Ready to give you energy in security and reliability. Range of battery modules ready to be matched to your DC UPS. In function of consumption of your load and the time you want to secure your system, you can choose different sizes of accumulation. They are products you can use in any type of industry and plant engineering, for wall mounting or DIN Rail mounting. Available with and without integrated batteries. Small VRLA Range gives you the possibility of mounting the Battery Bank wall or DIN Rail as you want, up to size 7.2Ah.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
VRLA
Main features:
- Output voltage 27,5Vdc (20°C)
- Short-circuit protection
- Operating range in minutes
- Small size
- Ambient temperature operation field: 5 ÷ 40°C
- IP20

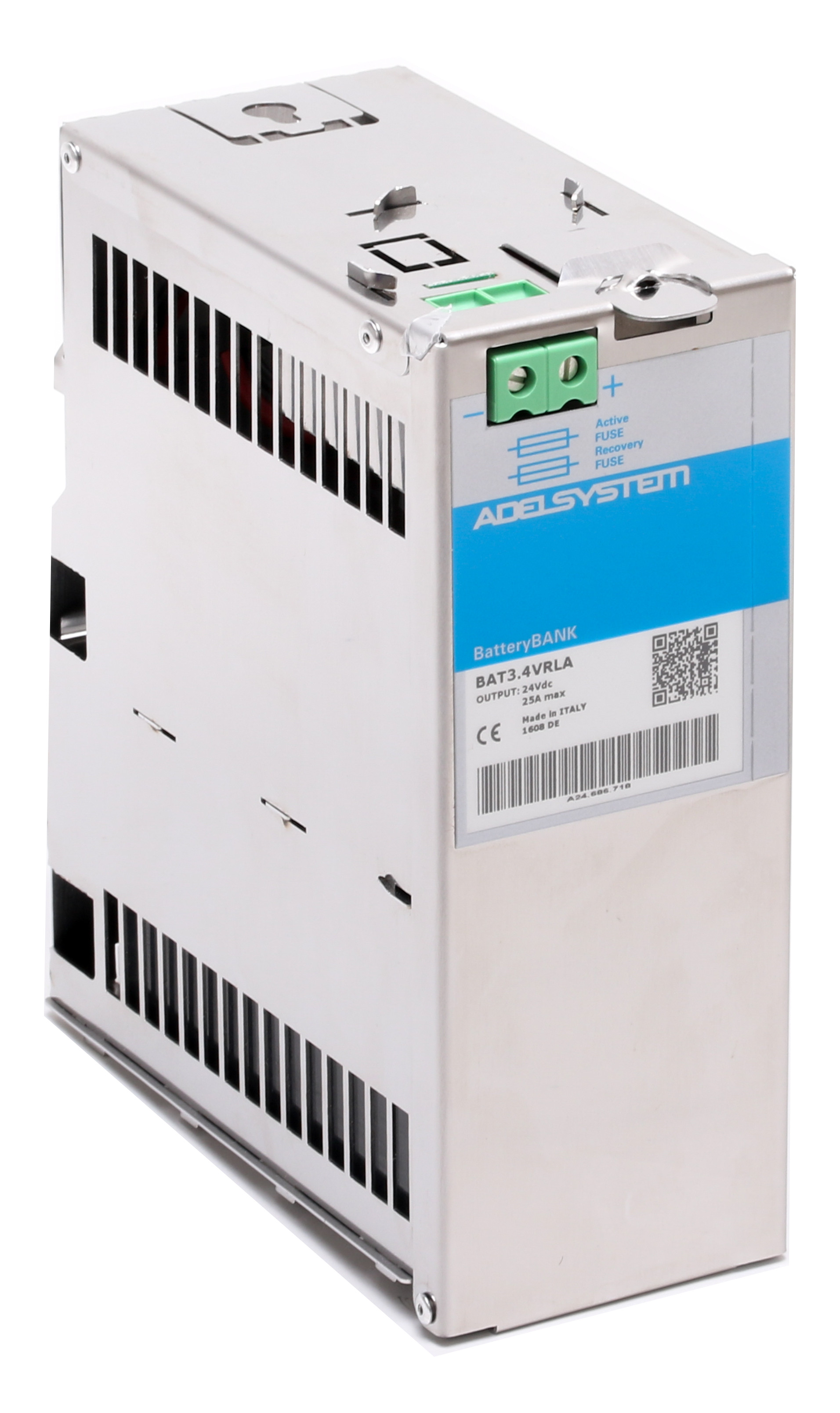

Battery Modules are available in the following sizes: 1.2 – 3 – 7.2 and 12Ah. They have been developed to enable battery applications to be carried out in safety. For this reason, they are fitted with fuse and terminal vlock and the whole set of batteries is protected by a case.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Small VRLA
- Maintenance free lead AGM, VRLA Technology
- Output: 24Vdc 1.2, 3, 7.2, 12Ah
- Protection: Fuse
- Connection with screws
- Short Circuit Protection
- IP20
- Wall Mount with screws
- DIN Rail Mount
- Small Size on the panel
Second generation of ultra-compact Battery Holders, for VRLA and LI-Ion Batteries, unique product for mounting DIN Rail and Wall mount for all models; the 12 Ah only for wall mounting. Steel Container, high battery protection, a minimum encumbrance on the DIN Rail combines the batteries overlapped. They are constantly monitored by the ADEL System DC UPS. Available in 24V.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SFP
- Input: Single-phase 115-230-277 Vac
- Output: 12-24-48 Vdc
- Temperature compensation
- Deep Discharge protections
- Charging curve IUoUO, constant voltage and constant current Battery Life Test function (Battery Care)
- Three charging levels: Boost, Trickle and Recovery
- Protected against short circuit and inverted polarity
- Signal Output (contact free) for discharged or damaged battery, Modbus, Mains/Back-Up
- Combined with DC UPS series
- Wall Mount
- Protection degree IP30
- Space Saving
Container designed to be used as a panel of full power, can be integrated inside by the whole range of ADEL System DC UPS 12-24-48 Vdc, even with batteries up to 18Ah. Specific for application in Fire Protection systems. Designed for 2 or 3 outputs to load protected by overload and short circuit, fault indication, eliminate the deep discharge of the batteries. Compensated battery charging in temperature. Minimum dimensions, wall mounting with the possibility to distance from the wall of 1 cm. IP30 protection. Comply with EN 54-4; They are awaiting approval.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
