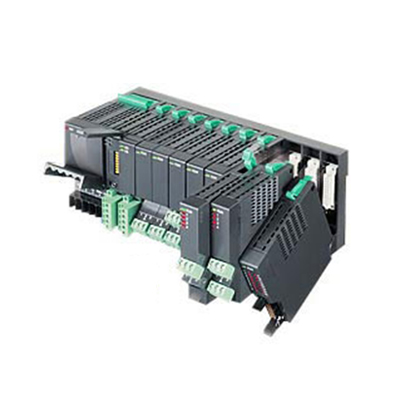

R5 Series - Compact, Mixed-Signal Remote I/O
Free combination of I/O modules, network modules and power modules.
- Single analog module can handle fully-isolated 2 points.
- Hot-swappable I/O modules
- Dual redundant communication networks and power supplies
- Space-saving DIN terminal block or heavy-duty screw terminal block selectable for I/O
- 1500 Vac isolation
 |
 |
 |
| The slanted I/O terminals are easily accessible even with high-density wiring. | Re-Transmitted 4 to 20 mAdc output is optional for local monitoring or recording. | Add another power module for a backup power source. |
 |
Dual network communication modules are optional for mission critical applications. If you choose two different network protocols for the network modules, the remote I/Os can be directly monitored by two different manufacturers’ PLC systems. |
 |
The Power Supply Module is located at the left end, followed by 2 slots for Network Modules, and then 4, 8 or 16 slots for I/Os. If you only need single communication, the 5th or 9th I/O module can be added to the 4- or 8-position base.
R5 Configurator Software (Model: R5CON)
