R7F4D Series - Compact Remote I/O
HLS (High-speed Link System) for FA Machinery Control.
- Compact, all-in-one package
- 16 discrete inputs or outputs and 8 discrete I/O modules selectable
- Easy-to-wire connection typically used for machinery control:
- Mini-clamp (e-CON) connector
- MIL connector
- Spring cage (tension-clamp) terminal

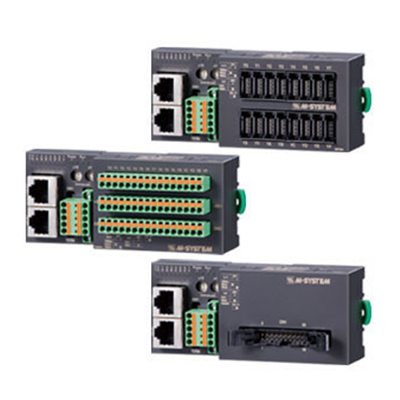

| Mini-Clamp Connector | MIL Connector | Spring Cage Terminal | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|||||||||
| Recommended connector: 3M Mini-Clamp plug, 37104-XXXX-000FL *IDC: Insulation-displacement connector |
Recommended connector: OMRON MIL socket XG4M-2030 |
Connector type (provided): Phoenix Contact terminal block FMC 1,5/16-ST-3,5 |
