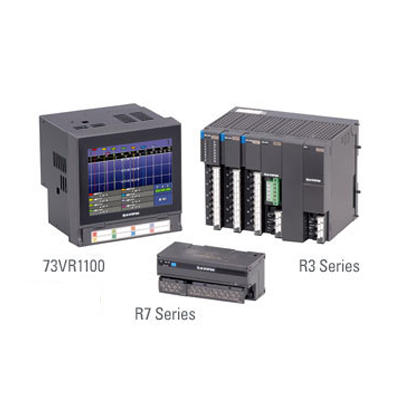

73VR1100 - Paperless Recorder with Remote I/O
Connects to remote I/O.
Designed to utilize a wide variety of M-System's remote I/O devices.
- Best suited to record data transmitted from I/O located remotely in the field, or inside an instrumentation or control cabinet.
- Instead of using expensive sensor cables, reduce wiring runs by using open field networks through remote I/O.
- I/O separated 73VR1100 provides the installation flexibility which fits in the tight space of a control panel or machinery chassis.
| SPECIFICATIONS | ||
|---|---|---|
| Number of input channels | 64, 128 (Function pen points included) | |
| Function pen points | 32, 64 | |
| Storing rate (high speed mode) | 100 msec. | |
| Storing rate (normal mode) | 500 msec., 1, 2, 5, 10 seconds, 1minute, 10 minutes | |
| Input types | R3 series I/O modules (DC voltage, DC current, Thermocouple, RTD, AC voltage, AC current, Encoder, Totalized pulse) | |
| Trigger input | Max. 128 via remote I/O | |
| Alarm/Run output | Alarm x 1, Run x 1; Alarm also available via remote output modules | |
| Weight | 1.7 kg (3.7 lbs) | |
| Display | Display device | 5.5-inch TFT LCD |
| Display colors | 256 | |
| Resolution | 320 x 240 pixels | |
| Ethernet | 10BASE-T / 100BASE-TX automatically switched; Conforms to IEEE802 (10BASE-T) or IEEE802.3 (100BASE-TX) |
|
| Degree of protection | IP65 (applicable to the front panel of with the cover closed when a single unit is mounted according to the specified panel cutout) |
|
