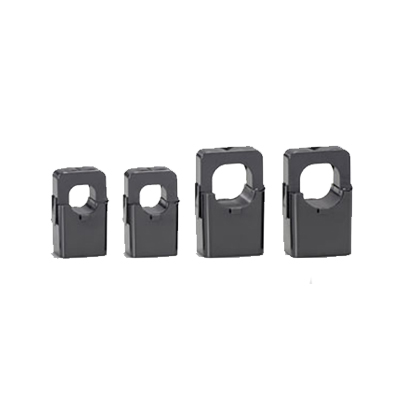

CLSC
Clamp-on Current Sensors
- Easy-to-install, clamp-on type current sensor
- Over-voltage clamp element for safety in open circuit
- 1A Output
- Wide frequency band
- Screw terminal connection
Data Sheet :
Model CLSC | -10 | -25 | -50 | -60 |
---|---|---|---|---|
Applicable max. wire diameter | 24 mm | 24 mm | 36 mm | 36 mm |
Primary rating | 100A | 250A | 500A | 600A |
Secondary rating | 1A | 1A | 1A | 1A |
