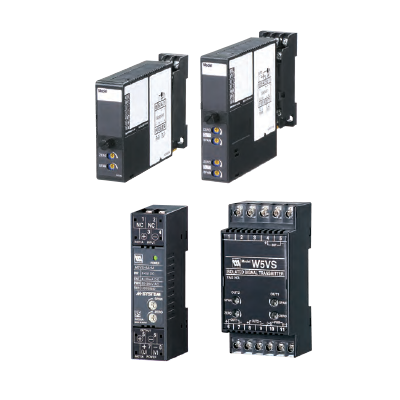

Signal Conditioners Series Selection Guide
Signal conditioners convert a field signal from various sensors into standard signal suitable for processing in PLC, DCS or PC-based systems. They are also used to boost a signal to increase load drive capability, to isolate a signal to stop ground loops.
More than 75000 combinations of process signal I/O, power input and mounting configuration are selectable. Additionally, M-System offers the broadest line of signal splitters available.
-
M2XUPC programmable I/O
M6SXU , M6NXU , M6DXUPC programmable I/O, Ultra-slim type
M3LU2 , M3LUPC & "One-Step Cal" programmable I/O
-
M2TS , M2TT
T/C input, fixed range
M2RS1 , M2RS , M2RTRTD input, fixed range
M2XUPC programmable I/O
M2XT2T/C input, PC programmable
M2XUMUniversal input, PC programmable; Modbus-RTU
M2XR2RTD input, PC programmable
M5TST/C input, fixed range, low cost
M5RSRTD input, fixed range, low cost
W2XTT/C input signal splitter, PC programmable
W2RS1 , W2RSRTD input signal splitter, fixed range
M2XRRTD input signal splitter, PC programmable
W2TST/C input signal splitter, fixed range
M6SXU , M6NXU , M6DXUPC programmable I/O, Ultra-slim type
M6SXT , M6NXT , M6DXTT/C input, PC programmable, ultra-slim type
M6SXR , M6NXR , M6DXRRTD input, PC programmable, ultra-slim type
M3LU2 , M3LUPC & "One-Step Cal" programmable I/O
-
M6SYV , M6NYV , M6DYV
Ultra-slim type
M6SDY , M6NDY , M6DDYUltra-slim type
M6SSN , M6NSN , M6DSNUltra-slim type, single or dual channel
M2VS , M2VTPlug-in socket mounted
M2SNPlug-in socket mounted, single or dual channel
W2DYSPlug-in socket mounted, signal splitter
W2DYH2Plug-in socket mounted, HART transparent signal splitter
M5VSLow profile, low cost
M5DYLow profile, low cost
M3SYVThin profile type
M3SDYThin profile type, DC powered
A3DYHPlug-in socket mounted, galvanic isolator
W5DYLow profile, low cost, signal splitter

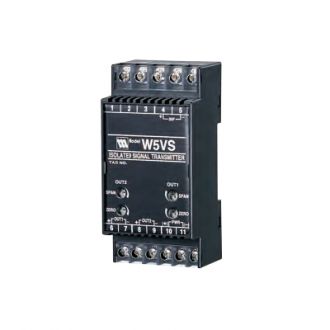

W5VSLow profile, low cost, signal splitter
B5SNLow profile, low cost
M3LDYThin profile type, programmable linearization
M3DYThin profile type, DC powered
-
M6SXM , M6NXM , M6DXM
PC programmable I/O, ultra-slim type
M2XM2PC programmable I/O
M5MSFixed range, low cost
W5MSFixed range signal splitter, low cost
W2XMSignal splitter, PC programmable
W2MSFixed range signal splitter
M3LMPC & "One-Step Cal" programmable I/O
M3SXMPC programmable I/O, thin profile type
M3SMSFixed range, thin profile type
-
M6SCTC , M6NCTC , M6DCTC
10-600 A current sensor input, ultra-slim type
M2CEC10-600 A current sensor input
M2PE110 or 150 V input, true RMS sensing
M2PA110 or 150 V input, average sensing
M2ACAC voltage/current input
M2TGTachogenerator (tachometer) input
W2DYSPlug-in socket mounted, signal splitter
W2TGTachogenerator (tachometer) input signal splitter
W2PE110 or 150 V input , true RMS sensing
W2PA110 or 150 V input, average sensing
M5CT1 A or 5 A input, true RMS sensing, low cost
M5CTC10-600 A current sensor input, low cost
M5PT110, 150, 220 V input, true RMS sensing, low cost
-
M6SXF1 , M6NXF1 , M6DXF1
PC Programmable I/O, Ultra-Slim Type, Single-input
M6SXF2 , M6NXF2 , M6DXF2PC Programmable I/O, Ultra-Slim Type, Two-input
M6SXF3 , M6NXF3 , M6DXF3PC Programmable I/O, Ultra-Slim Type,
hold function module
M2ADSTwo-input Adder
M2SBSTwo-input Subtractor

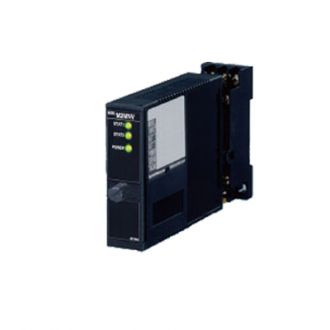

M2MNVAnalog Switching Module
W2XFPC Programmable 101-point Linearizer; Signal Splitter
M3LUPC Programmable Universal I/O 128-point Linearizer
M2MLSTwo-input Multiplier
M2DISTwo-input Divider
M2REBRatio / Bias Function, Output Bias
M2RTSRatio / Bias Function, Input Bias
M2FL , M2FLSSquare Root Extractor
M2LMSHigh / Low Limiter
M2UDS2Inverted Output, Simple Loop Test Output
M2UDSInverted Output
M2CDSDelay Buffer (first order lag output)
M2CRSRamp Buffer (constant response)
M2AMS2Track or Hold, Simple Loop Test Output
M2AMSTrack or Hold
M2PHS2Peak/Valley Hold, Simple Loop Test Output
M2PHSPeak/Valley Hold
M2SES2High or Low Signal Selector, Simple Loop Test Output
M2SESHigh or Low Signal Selector
M2MSTParameter Generator
-
M2FV
36 I/O combinations by DIP switch setting
M2XV2PC programmable I/O
M2VFFixed range, fast response <180 microsec.
M2VF2Fixed range, fast response < 30 microsec.
M2VF3Fixed range, high accuracy, fast response <30 microsec.
M6SXV , M6NXV , M6DXVPC programmable I/O, ultra-slim type
M6SVS , M6NVS , M6DVSFixed range, ultra-slim type
M6SWVS , M6NWVS , M6DWVSFixed range signal splitter, ultra-slim type
M6SVF , M6NVF , M6DVFFixed range, ultra-slim type, fast response
M6SYV , M6NYV , M6DYVFixed range isolator, ultra-slim type
W2VFFixed range signal splitter, fast response
W2VSFixed range signal splitter
W5FVDIP switch configurable signal splitter, low cost
W5VSFixed range signal splitter, low cost
M5VFFixed range, low cost, fast response
M5VSLow profile, low cost
-
M2D2
Plug-in socket mounted, 30 mA
M2DYSPlug-in socket mounted
M2DYH2Plug-in socket mounted
M2DYHRPlug-in socket mounted, current repeater, HART transparent
M2DNYSquare root extraction
M6SDY , M6NDY , M6DDYUltra-slim type
W2DYSPlug-in socket mounted, signal splitter
W2DYH2Plug-in socket mounted, HART transparent signal splitter
-
M2SP
Fixed range
M2XRP2PC programmable I/O, encoder input
M2PPPulse isolator
M2XPA3PC programmable I/O
M2PRUPulse scaler
M2APFixed range frequency output
M6SPA , M6NPA , M6DPAFixed range, ultra-slim type
M6SPP , M6NPP , M6DPPPulse isolator, ultra-slim type
M3LPA2Thin profile type, DC powered
M5PAFixed range, low cost
W5PAFixed range signal splitter, low cost
W2SPFixed range signal splitter
