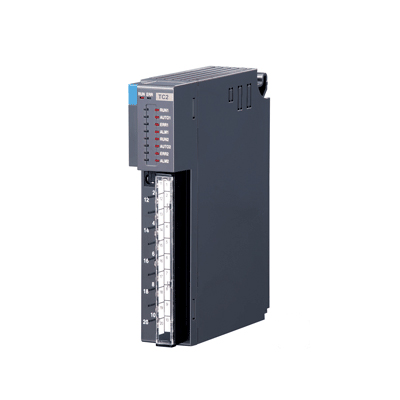

Temperature Control Module (R3 Series)
model: R3-TC2
| Functions & Features | |
 |
Two PID controllers |
|
Universal input x 2 points, control output x 4 points, discrete input x 2 points, clamp-on current sensor input x 2 points |
|
2 universal inputs configurable to T/C, RTD, DC current or voltage independently |
|
Clamp-on current sensor input enables to detect heater wire break or over current |
|
Auto tuning function |
|
Configurable with PC configurator (model: R3CON) |
 |
|
|
The model R3-TC2 is a new addition to the R3 Series Remote I/O. This temperature control module is available to mix with existing I/O modules on the same node, which enables the Modbus interface module R3-NM3 to handle data of control loop and monitoring loop. It can build a monitoring control system easier than installing remote I/O and stand-alone temperature controller individually. |
APPLICATION EXAMPLE |
 |
