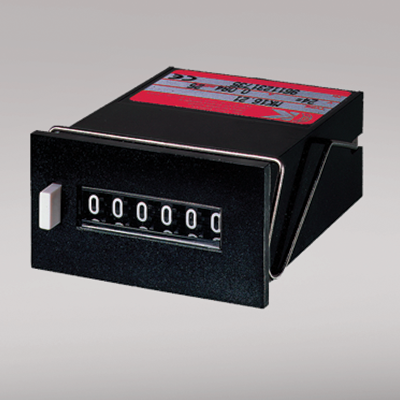

3400T
Electromechanical counter
- Supply voltage 24 VDC
- 6 digits
- Reset button in the counter front
Data sheet :
Application
- Totalizing of pulses from e.g. energy and flow measurements.
Technical characteristics
- Dimensions: 52 x 28 x 80 mm
- Cut-out: 48.5 x 24.5 mm
- Current consumption: 80 mA
- Max. frequency: 25 ms
- Connection: Solder terminals
- Min. pulse width: 24 ms
- Min. pulse interval: 16 ms
