Application

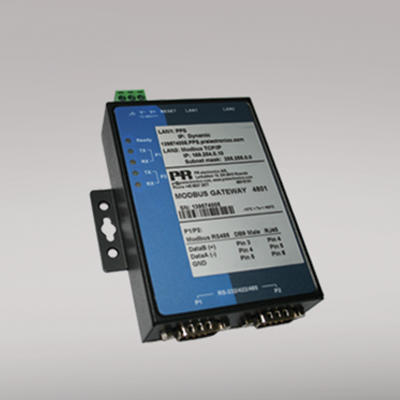

• Modbus RTU to Ethernet Modbus TCP/IP gateway.
• PPS app communication gateway.
• Includes 200 mm RJ45 to SUB-D9 cable.

Technical characteristics

• Supply voltage: 12...48 VDC - 4.5 W - 340 mA (max.)
• Operating temperature: -10...+60°C
• LAN1, RJ45: PPS ”device s/n”.pps.prelectronics.com
  IP: Dynamic
• LAN2, RJ45: Modbus TCP/IP - IP: 169.254.0.10
  Subnet mask: 255.255.0.0
• Port 1 and 2, DB9 male: Modbus RTU over RS-485
  (default baudrate: 57.6k bps)
