7030

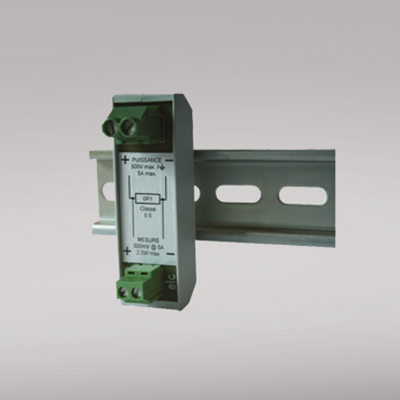

Shunt resistor 0.1 Ω for DIN rail mounting
- Max. voltage: 500 V (between ground and terminals)
- Connection: screw terminals
Data sheet :
Application
- External shunt resistor in connection with AC/DC transmitter type 2279 or trip amplifier type 2231.
Technical characteristics
- Max. voltage: 500 V (between ground and terminals)
- Max. current: 5 A
- Accuracy: 0.5
- Max. load: 2.5 W
- Connection: Screw terminals
- Color: Gray with green terminals
