Application

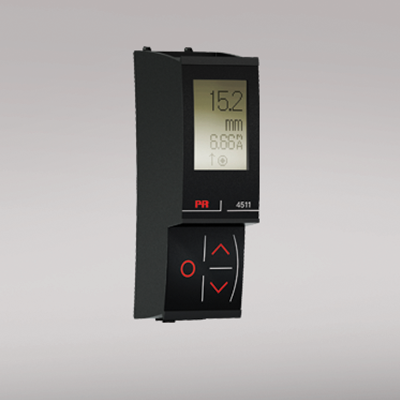

- The 4511 detachable display adds Modbus RTU RS-485 serial communications to all current and future 4000/9000 units.
- The unit converts a wide array of sensors and analog device signals measured by the system 4000 like uni- and bipolar mA and voltage signals, potentiometer, Lin. R, RTD and TC, to a Modbus communication line signal.
- When mounted on a system 9000 device any signal coming from or going to I.S. classified area, like AI, AO, DI and DO signals, can be converted to a Modbus network.
- All individual unit operating parameters can easily and quickly be configured by using the Modbus communication or by using the front display menu.
- The easily readable 4511 display can be used to read the process signal, simulate the output signal, indicate sensor errors and internal device errors.
Technical characteristics
- 4511 has full 4501 functionality for unit programming, process signal monitoring and diagnostics handling.
- Modbus RTU protocol is supported using a serial RS-485 communication wiring.
- Multidrop half-duplex connection via shielded RJ45 connector.
- High safe galvanic isolation of 2.5 kVAC between the serial wiring and the connected system 4000/9000 units.
- Modbus parameters such as address, baud rate, stop bit(s), and parity bit are configured from the 4511 display, which also stores parameters.
Mounting / installation / programming
- Mounting in Zone 2 / Div 2.
- The 4511 can be moved from one device to another. The individual system 4000/9000 unit configuration of the first device can be saved and downloaded to subsequent devices.
- Programmed parameters can be protected by a userdefined password.
- When mounted on devices that are installed upside down, a menu item allows the display on the 4511 to be rotated 180o and the up/down buttons to switch function.
Environmental Conditions
Specifications range -20°C to +60°C Storage temperature -20°C to +85°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Installation in Pollution degree 2 & measurement / overvoltage cat. II Mechanical specifications
Dimensions (HxWxD) 73.2 x 23.3 x 26.5 mm Dimensions (HxWxD) w/ 4000/9000 unit 109 x 23.5 x 131 mm Weight approx. 100 g Connection RJ45 - shielded Common specifications
Max. power consumption ≤ 0.15 W Isolation voltage, test / working 2.5 kVAC / 250 VAC reinforced isolation Signal / noise ratio > 60 dB Response time < 20 ms Update rate > 50 Hz Extended EMC immunity: NAMUR NE 21, A criterion, burst No loss of communication Signal type RS-485 half duplex Serial protocol Modbus RTU Modbus mode RTU - slave Devices on an RS485 line Up to 32 (w/o a repeater) Data rates, baud 2400, 4800, 9600, 19200, 38400, 57600, 115200 Automatic baudrate detection Yes - can be configured ON or OFF Parity Even, Odd, None Stop bit(s) 1 or 2 Digital addressing 1...247 Response delay 0...1000 ms Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 DNV Marine Stand. f. Certific. No. 2.4 ATEX 2004/108/EC DEKRA 13ATEX0098 X IECEx DEK 13.0026 X FM 0003049132-C UL UL 61010-1 EAC TR-CU 020/2011 EN 61326-1
