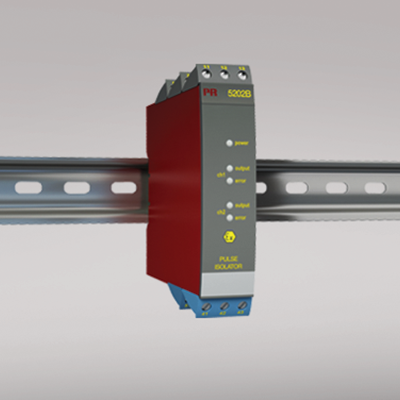

5202B
Pulse isolator
- 2 channels - 2 or 4 outputs
- Dual output
- 5-port 3.75 kVAC galvanic isolation
- Cable error detection
- Universal supply by AC or DC
Manuals :
Data sheet :
Application
- Pulse isolator with safety barrier for the supply of NAMUR sensors installed in the hazardous area.
- Pulse isolator with safety barrier for the detection of mechanical contacts installed in the hazardous area.
- One input signal can be used on two separate outputs.
- A cable error alarm can be detected on a separate output.
Technical characteristics
- PR5202B1 and 5202B2 have relays with change-over contacts or open NPN collectors available in the safe area.
- PR5202B4 has 4 SPST relays, which are activated simultaneously two and two, available in the safe area. Each relay can be programmed to the function N.O. or N.C.
- Inputs, outputs and supply are floating and galvanically separated.
- 5202B is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
Mounting / installation
- Mounted vertically or horizontally on a DIN rail. Up to 84 channels per meter can be mounted.
Environmental Conditions
Specifications range -20°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm Weight approx. 230 g Wire size 1 x 2.5 mm2 stranded wire Screw terminal torque 0.5 Nm Common specifications
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC Fuse 400 mA SB / 250 VAC Max. power consumption ≤ 1.5 W (2 channels), 5202B1 and 5202B2 ≤ 2.0 W (2 channels), 5202B4 Internal consumption ≤ 1.5 W (2 channels), 5202B1 and 5202B2 ≤ 2.0 W (2 channels), 5202B4 Isolation voltage, test / working 3.75 kVAC / 250 VAC Auxiliary supplies: NAMUR supply 8 VDC / 8 mA EMC immunity influence < ±0.5% Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% Input specifications
Sensor types NAMUR according to EN 60947-5-6 / mechanical contact Frequency range 0...5 kHz Pulse length > 0.1 ms Input resistance 1 kΩ Trig level, signal < 1.2 mA, > 2.1 mA Trig level, cable fault < 0.1 mA, > 6.5 mA Output specifications
Relay output: Max. switching frequency 20 Hz Max. voltage 250 VRMS Max. current 2 AAC Max. AC power 100 VA Max. load at 24 VDC 1 A Opto, NPN outputs: Max. switching frequency 5 kHz Min. pulse length, NPN output > 0.1 ms Max. load, current / voltage 80 mA / 30 VDC Voltage drop at 25 mA / 80 mA < 0.75 VDC / < 2.5 VDC Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 PELV/SELV IEC 364-4-41 and EN 60742 ATEX 2004/108/EC DEMKO 99ATEX127186 UL UL 913, UL 508 EAC TR-CU 020/2011 EN 61326-1 EAC Ex TR-CU 012/2011 RU C-DK.GB08.V.00410
