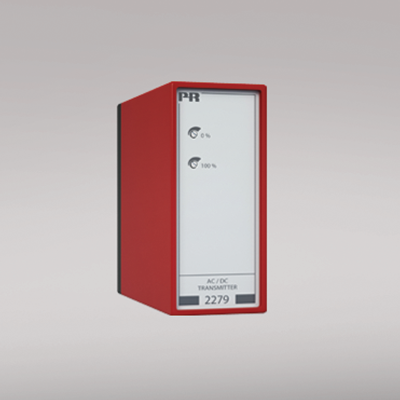

AC / DC transmitter
- Input galvanically separated from output and supply
- AC current measurement
- AC voltage measurement
- Current and voltage output
- 24 VDC supply or universally supplied
- Applicable in PELV/SELV circuits
Manuals :
Data sheet :
Advanced features
- ±20% adjustment of the 0 and the 100% measurement range is possible at the front panel.
- Input and output ranges are programmable by use of internal DIP-switches.
Application
- AC current measurement e.g. in connection with a current transformer or a current clamp.
- Direct AC voltage measurement.
Technical characteristics
- Analog signal conditioning with microprocessor based gain and zero offset.
- Signals in the ranges 0.5...250 VRMS sinusoidal voltage can be connected directly to the input, ranges are programmed via DIP-switches and jumpers.
- Analog standard current output of 0/4...20 mA or standard voltages of 0...1 or 0...10 VDC ranges are programmed via DIP-switches and jumpers.
- Special currents and voltages within the signal range.
- Signal reversal e.g. 20...4 mA is possible in a special version.
- Universally supplied units have a 3-port galvanic separation between input, supply, and output.
- Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.
Environmental Conditions
Specifications range -20°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP50 Mechanical specifications
Dimensions (HxWxD) 80.5 x 35.5 x 84.5 mm (D is without pins) Weight DC / universally supplied 100 g / 160 g Common specifications
Supply voltage 19.2...28.8 VDC Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC Max. power consumption ≤ 1.3 W (2279--D) ≤ 2.7 W (2279--P) Isolation voltage, test / working 3.75 kVAC / 250 VAC Signal / noise ratio Min. 60 dB Response time (0...90%) < 1.5 s Effect of supply voltage change < 0.005% of span / VDC Temperature coefficient < ±0.01% of span / °C Linearity error < ±1% of span EMC immunity influence < ±0.5% of span Input specifications
Max. offset 50% of max. value Current input: Measurement range 0...1 ARMS / 40...400 Hz Min. measurement range (span), current input 500 mARMS Input resistance, current input Nom. 1 Ω Voltage input: Measurement range 0...250 VRMS / 40...400 Hz Min. measurement range (span), voltage input 0.5 VRMS Input resistance, voltage input > 1 MΩ Output specifications
Max. offset 20% of max. value Current output: Signal range 0...5 mA / 0...20 mA Min. signal range 4 mA / 16 mA Load (max.) 20 mA/600 Ω/12 VDC Load stability, current output ≤0.01% of span / 100 Ω Current limit 23...28 mA Voltage output through internal shunt See manual for details *of span = of the presently selected range Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 PELV/SELV IEC 364-4-41 and EN 60742 EAC TR-CU 020/2011 EN 61326-1
