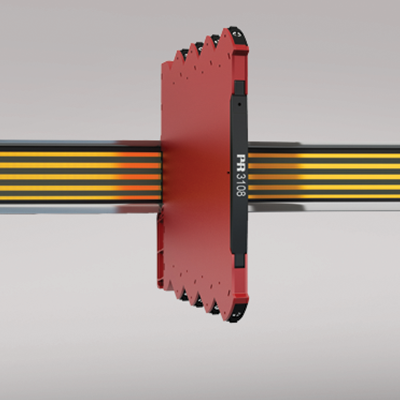

3108
Isolated repeater / splitter
- Isolation and conversion of current signals
- Slimline housing of 6 mm
- Response time <7 ms
- Splitter function: 1 in - 2 out
- Simple - no setup needed
Manuals :
Data sheet :
Application
- Isolation and conversion of standard DC signals.
- Galvanic separation of analog current signals.
- Elimination of ground loops and measurement of floating signals.
- A competitive choice in terms of both price and technology for galvanic isolation of current signals to SCADA systems or PLC equipment.
- Installation in ATEX Ex zone 2 / IECEx Zone 2 / FM division 2.
- Suitable for environments with high vibration stress, e.g. ships.
Technical characteristics
- The input is protected against overvoltage and polarity error.
- Factory-calibrated measurement ranges.
- Inputs and outputs are floating and galvanically separated.
Environmental Conditions
Specifications range -25°C to +70°C Storage temperature -40°C to +85°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Installation in Pollution degree 2 & measurement / overvoltage cat. II Mechanical specifications
Dimensions (HxWxD) 113 x 6.1 x 115 mm Weight approx. 70 g DIN rail type DIN EN 60715/35 mm Wire size 0.13 x 2.5 mm2 / AWG 26...12 stranded wire Screw terminal torque 0.5 Nm Vibration: 2...25 Hz ±1.6 mm Vibration: 25...100 Hz ±4 g Common specifications
Supply voltage 16.8...31.2 VDC Max. power consumption 0.8 W Internal consumption 0.4 W (typ.) / 0.65 W (max.) Isolation voltage, test 2.5 kVAC Isolation voltage, working 300 VAC (reinforced) / 250 VAC (Zone 2, Div. 2) Signal / noise ratio > 60 dB Response time (0...90%, 100...10%) < 7 ms Accuracy Better than 0.05% of selected range Temperature coefficient < ±0.01% of span / °C EMC immunity influence < ±0.5% of span Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% of span Input specifications
Current input: Measurement range 0...20.5 mA Functional range, current input 0...23 mA Input voltage drop < 1.5 VDC Output specifications
Current output: Signal range 0...20.5 mA (span) Load (max.) 23 mA/300 Ω Load stability, current output ≤0.01% of span / 100 Ω Current limit ≤ 28 mA *of span = 0...20 mA Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 ATEX 2004/108/EC KEMA 10ATEX0147 X IECEx KEM 10.0068X FM 3041043-C DNV Marine Stand. f. Certific. No. 2.4 GL V1-7-2 UL UL 61010-1 EAC TR-CU 020/2011 EN 61326-1 EAC Ex TR-CU 012/2011 RU C-DK.GB08.V.00410 CCOE P337347/1
