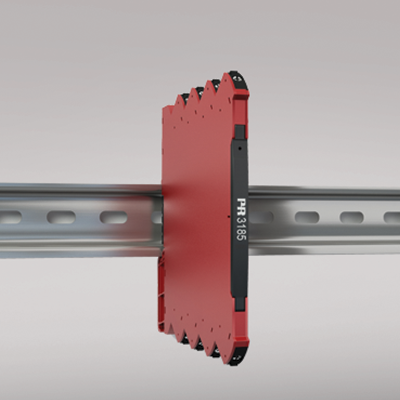

3185

Loop powered isolator

  • 1 or 2 channel input loop powered isolator
  • Signal 1:1 functional range 0...23 mA
  • Low input voltage drop and fast response time
  • Excellent accuracy and high load stability
  • Slimline 6 mm housing

Manuals : pdf-icon.png

Data sheet : pdf-icon.png

  • Overview

  • Technical details

  •

    Application

    • 1:1 input loop powered isolator of current signals in the range 0(4)...20 mA.
    • 3185 is an easy mounting DIN rail unit.
    • A very competitive choice in terms of both price and technology for galvanic isolation of current signals.
    • Provides surge suppression and protects control systems from transients and noise.
    • 3185 eliminates ground loops and can be used for measuring floating signals.
    • The device can be mounted in Safe area or in Zone 2 and Cl. 1 Div 2. area.

    Technical characteristics

    • 3185 is powered by the analog input current signal loop.
    • Low input voltage drop, typ 1.35 V + Vout.
    • Excellent conversion accuracy, better than 0.1% in the range 0…20.5 mA.
    • Functional range is 0...23 mA which means that 3185 is NAMUR NE43 compliant.
    • Inputs and outputs are floating and galvanically separated.
    • The output is voltage limited to 17.5 VDC.
    • High galvanic isolation of 2.5 kVAC.
    • Fast response time < 5 ms.
    • Excellent signal/noise ratio > 60 dB.

    Mounting / installation / programming

    • DIN rail mounting with up to 330 channels per meter.
    • Temperature operation range is from -25...+70°C.
  •

    Environmental Conditions

    Specifications range -25°C to +70°C
    Storage temperature -40°C to +85°C
    Calibration temperature 20...28°C
    Relative humidity < 95% RH (non-cond.)
    Protection degree IP20
    Installation in Pollution degree 2 & measurement / overvoltage cat. II

    Mechanical specifications

    Dimensions (HxWxD) 113 x 6.1 x 115 mm
    Weight approx. 70 g
    DIN rail type DIN EN 60715/35 mm
    Wire size 0.13 x 2.5 mm2 / AWG 26...12 stranded wire
    Screw terminal torque 0.5 Nm

    Common specifications

    Internal consumption, per channel 30 mW
    Isolation voltage, test 2.5 kVAC
    Isolation voltage, working 300 VAC (reinforced) / 250 VAC (Zone 2, Div. 2)
    Signal / noise ratio > 60 dB
    Cut-off frequency (3 dB) 100 Hz
    Response time (0...90%, 100...10%) < 5 ms
    EMC immunity influence < ±0.5% of span
    Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% of span

    Input specifications

    Signal range, input to output 0...20.5 mA
    Signal conversion 1:1
    Functional range, current input 0...23 mA
    Start up current, typ. 10 uA
    Current input overload, max. 50 mA
    Input to output voltage drop, typ. 1.25 V + (0.015 x Vout.) (Vout. = Iout.xRoutput load)
    Input voltage drop (Unit voltage drop) + Vout.

    Output specifications

    Output load, max. 600 Ω
    Output load stability < 0.01% of span / 100 Ω
    Voltage limit 17.5 V
    *of span = 0...20 mA

    Approvals

    EMC EN 61326-1
    LVD 2006/95/EC EN 61010-1
    ATEX 2004/108/EC KEMA 10ATEX0147 X
    IECEx KEM 10.0068X
    FM 3041043-C
    EAC TR-CU 020/2011 EN 61326-1
    DNV Marine Stand. f. Certific. No. 2.4
    GL V1-7-2
    UL UL 61010-1
