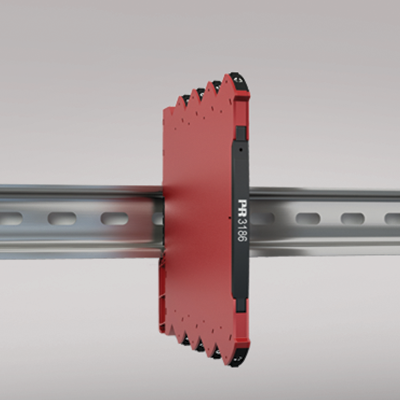

3186
2-wire transmitter isolator
- 1 or 2 channel 2-wire transmitter isolator
- Signal 1:1 functional range 3.5...23 mA
- Low channel voltage drop and fast response time
- Excellent accuracy
- Slimline 6 mm housing
Manuals :
Data sheet :
Application
- 1:1 output loop powered isolator of 2-wire transmitter 4...20 mA signals.
- 3186 is an easy mounting DIN rail unit.
- A very competitive choice in terms of both price and technology for galvanic isolation of 2-wire transmitter signals.
- Provides surge suppression and protects control systems from transients and noise.
- 3186 eliminates ground loops and can be used for measuring floating signals.
- The device can be mounted in Safe area or in Zone 2 and Cl. 1 Div 2. area.
Technical characteristics
- 3186 is powered by the host loop voltage.
- Wide supply range from 6...35 V.
- Low input to output voltage drop typ. 2.5 V.
- Excellent conversion accuracy, better than 0.05% in the range 3.8…20.5 mA.
- Functional range is 3.5...23 mA which means that 3186 is NAMUR NE43 compliant.
- Inputs and outputs are floating and galvanically separated.
- High galvanic isolation of 2.5 kVAC.
- Fast response time < 5 ms.
- Excellent signal/noise ratio > 60 dB.
Mounting / installation / programming
- DIN rail mounting with up to 330 channels per meter.
- Temperature operation range is from -25...+70°C.
Environmental Conditions
Specifications range -25°C to +70°C Storage temperature -40°C to +85°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Installation in Pollution degree 2 & measurement / overvoltage cat. II Mechanical specifications
Dimensions (HxWxD) 113 x 6.1 x 115 mm Weight approx. 70 g DIN rail type DIN EN 60715/35 mm Wire size 0.13 x 2.5 mm2 / AWG 26...12 stranded wire Screw terminal torque 0.5 Nm Common specifications
Supply voltage 6...35 VDC Internal consumption, per channel 50 mW Isolation voltage, test 2.5 kVAC Isolation voltage, working 300 VAC (reinforced) / 250 VAC (Zone 2, Div. 2) Signal / noise ratio > 60 dB Cut-off frequency (3 dB) 100 Hz Response time (0...90%, 100...10%) < 5 ms EMC immunity influence < ±0.5% of span Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% of span Input specifications
Available 2-wire transmitter (Tx) supply 3.5...32.5 V Signal range, input to output 3.8...20.5 mA Signal conversion 1:1 Functional range, current input 3.5...23 mA Output specifications
Output loop current limitation, typ. 24 mA Current output overload, max. 50 mA *of span = 4...20 mA Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 ATEX 2004/108/EC KEMA 10ATEX0147 X IECEx KEM 10.0068X FM 3041043-C EAC TR-CU 020/2011 EN 61326-1 DNV Marine Stand. f. Certific. No. 2.4 GL V1-7-2 UL UL 61010-1
