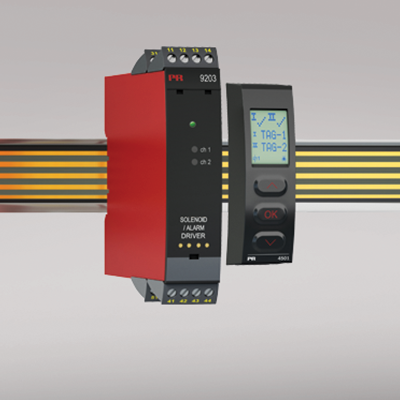

9203A

Solenoid / alarm driver

  • Universal driver for solenoids, acoustic alarms and LEDs
  • Extended self-diagnostics
  • 1 or 2 channels
  • Can be supplied separately or installed on power rail, PR 9400
  • SIL 2-certified via Full Assessment

Manuals : pdf-icon.png

Data sheet : pdf-icon.png

  • Overview

  • Technical details

  •

    Advanced features

    • Universal driver for the control of solenoids etc.
    • Two hardware versions make it possible to choose either Low (35 mA) or High (60 mA) current output.
    • Configuration and monitoring by way of detachable display front (PR 4511/4501).
    • Selection of direct or inverted function for each channel via PR 4511/4501 and the possibility of reducing the output current to suit the application.
    • Optional monitoring of the output current by way of PR 4511/4501.
    • Optional redundant supply via power rail and/or separate supply.

    Application

    • The device can be mounted in and transmit signals to non-classified area and zone 2.
    • Control of ON / OFF solenoids, acoustic alarms and LEDs.
    • The 9203A is controlled by an NPN/PNP signal or a switch signal.
    • Monitoring of internal error events via the individual status relay and/or a collective electronic signal via the power rail.
    • The 9203A has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508.

    Technical characteristics

    • 1 green and 2 yellow/red front LEDs indicate operation status and malfunction.
    • 2.6 kVAC galvanic isolation between input, output and supply.

    Mounting

    • The devices can be mounted vertically or horizontally without distance between neighbouring units.
  •

    Environmental Conditions

    Specifications range -20°C to +60°C
    Storage temperature -20°C to +85°C
    Calibration temperature 20...28°C
    Relative humidity < 95% RH (non-cond.)
    Protection degree IP20
    Installation in Pollution degree 2 & measurement / overvoltage cat. II

    Mechanical specifications

    Dimensions (HxWxD) 109 x 23.5 x 104 mm
    Dimensions (HxWxD) w/ 4501 / 4511 109 x 23.5 x 116 / 131 mm
    Weight approx. 170 g
    Weight incl. 4501 / 4511 (approx.) 185 g / 270 g
    DIN rail type DIN EN 60715/35 mm
    Wire size 0.13...2.08 mm2AWG 26...14 stranded wire
    Screw terminal torque 0.5 Nm
    Vibration IEC 60068-2-6 : 2007
    Vibration: 2...13.2 Hz ±1 mm
    Vibration: 13.2...100 Hz ±0.7 g

    Common specifications

    Supply voltage 19.2...31.2 VDC
    Fuse 1.25 A SB / 250 VAC
    Max. power consumption ≤ 3.5 W (2 channels)
    Isolation voltage, test /working: Input to any 2.6 kVAC / 300 VAC reinforced isolation
    Output 1 to output 2 1.5 kVAC / 150 VAC reinforced isolation
    Status relay to supply 1.5 kVAC / 150 VAC reinforced isolation
    Communications interface Communication enabler 4511 / Programming front 4501
    EMC immunity influence < ±0.5% of span
    Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% of span

    Input specifications

    Trig level LOW, NPN+switch ≤ 2.0 VDC
    Trig level HIGH, NPN+switch ≥ 4.0 VDC
    Max. external voltage, NPN+switch 28 VDC
    Input impedance, NPN+switch 3.5 kΩ
    Trig level LOW, PNP ≤ 8.0 VDC
    Trig level HIGH, PNP ≥ 10.0 VDC
    Max. external voltage, PNP 28 VDC
    Input impedance, PNP 3.5 kΩ

    Output specifications

    Output ripple < 40 mVRMS
    Max. voltage, status relay 110 VDC / 125 VAC
    Max. current, status relay 0.3 ADC / 0.5 AAC
    Max. AC power, status relay 62.5 VA / 32 W

    Approvals

    EMC EN 61326-1
    LVD 2006/95/EC EN 61010-1
    UL UL 61010-1
    DNV Marine Stand. f. Certific. No. 2.4
    SIL SIL 2 certified & fully assessed acc. to IEC 61508
