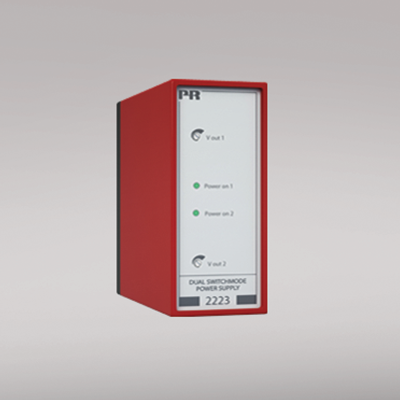

Advanced features
- The power supply is based on primary switch mode technology to achieve a high efficiency.
- The outputs are adjustable by 2 front potentiometers in the ranges 5...24 VDC.
Application
- Supply for small measuring systems that demand 2 stabilized voltages.
- Either as a combination of positive and negative voltages, or as 2 separate supplies as required.
- The two supplies are galvanically separated with 500 VAC test voltage and can be connected in series or used as two independent supplies with or without common gnd.
- Separation of circuits in safety installations according to PELV/SELV.
- Galvanic isolation between the primary and the secondary voltage is achieved through the double-isolated safety transformer.
Technical characteristics
- Two green LEDs, Power ON 1 and Power ON 2, indicate active outputs.
- By connecting the two outputs in series, 10...48 VDC or ±5...24 VDC can be achieved.
- The Input circuit is protected with a bimetal thermal fuse.
- DC output short circuit protection with current limiter.
- Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.
Environmental Conditions
Specifications range -20°C to +60°C Relative humidity < 95% RH (non-cond.) Protection degree IP30 Mechanical specifications
Dimensions (HxWxD) 80.5 x 35.5 x 84.5 mm (D is without pins) Weight approx. 400 g Common specifications
Internal consumption 4 W Isolation voltage, test / working 3.75 kVAC / 250 VAC Isolation output 1 / 2, test / working 500 VAC / 50 VAC (75 VDC) Effect of supply voltage change < ±30 mV (±10%) Transformer EN 60742 Transient stability (10%-max. load) < 250 mV Temperature coefficient 0.05% / °C EMC immunity influence < ±0.5% Input specifications
Supply voltage 21.6...26.4 VAC 103.5...126.5 VAC
207...253 VACFrequency 50...60 Hz Output specifications
Output voltage 4.75...25.2 VDC Output power Max. 7.5 W (total) Output current, per channel 0.5 A / 5 VDC (2.5 W) 0.37 A / 12 VDC (4.5 W)
0.30 A / 15 VDC (4.5 W)
0.18 A / 24 VDC (4.3 W)Load effect (10%-max. load) < 1.5% / A Current limit Typ. 100 mA (short circuit) Output ripple < 20 mVRMS Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 PELV/SELV IEC 364-4-41 and EN 60742 EAC TR-CU 020/2011 EN 61326-1
