Advanced features

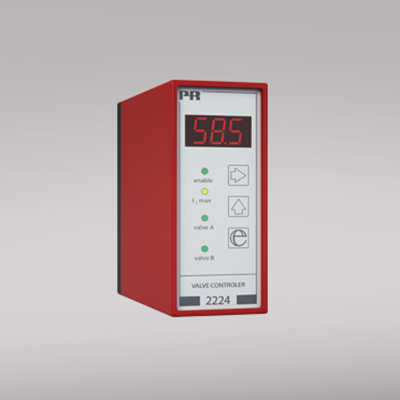

- Multifunction user interface consisting of three pushbuttons and a 3-digit LED display.
- All parameters are protected against unauthorized changes with a password.
Application
- Control and regulation of single- or double-coil hydraulic and pneumatic proportional valves used for accurate oil flow regulation, linear soft acceleration and deceleration, modulated output signal, and programmable deadband.
- Is highly suitable for joystick regulation of A/B movements.
- Where changes to A and B need to be selected directly or according to the value of an input signal.
Technical characteristics
- During operation the display shows the present output signal as a % of the I valve.
- Programmable current or voltage input for standard signals acc. to order schedule, joystick / potentiometer or a special non-programmable input.
- Digital inputs for external control functions.
- A pulsating current output prevents the connected valve from sticking.
- Optional programming of the modulation frequency (PWM) between 8 and 400 Hz.
- Multiple adjustable parameters such as output currents, ramp times, jump values, chopper frequency, reversal, deadband, and ON/OFF functions.
- Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.
Environmental Conditions
Specifications range -20°C to +60°C Relative humidity < 95% RH (non-cond.) Protection degree IP50 Mechanical specifications
Dimensions (HxWxD) 80.5 x 35.5 x 84.5 mm (D is without pins) Weight approx. 130 g Common specifications
Supply voltage 9.6...14.4 or 19.2...28.8 VDC Internal consumption 2 W / 24 V 1,8 W / 12 V Communication Front-programmable Updating time 30 ms Temperature coefficient 0.01%/°C Linearity error 0.2% EMC immunity influence < 2% of span Input specifications
Current input: Measurement range 0...20 mA 4...20 mA Input resistance, current input 50 Ω + PTC (54 Ω) Voltage input: Measurement range 0/0.2...1 V and 0/2...10 V Input resistance, voltage input 10 MΩ Potentiometer input 0...10 V or ±10 V / 10 kΩ Operation / shutdown PNP / 2.2 kΩ, 12 / 24 V Imax.1 & Imax.2 PNP / 2.2 kΩ, 12 / 24 V A / B channel PNP / 2.2 kΩ, 12 / 24 V Deadband 0...99.9% of input span Output specifications
Output voltage Supply voltage-0.5 V (max.) Output power 36 W (max.) Output current 3000 mA mean Current peak 7 A Reference voltage 10 VDC (A valve) ±10 VDC (A & B valve) Ramp up & down Time 0...10.0 s PWM frequency 8...400 Hz in steps of 1 Hz *of span = of the presently selected range Approvals
EMC EN 61326-1 EAC TR-CU 020/2011 EN 61326-1
