Advanced features

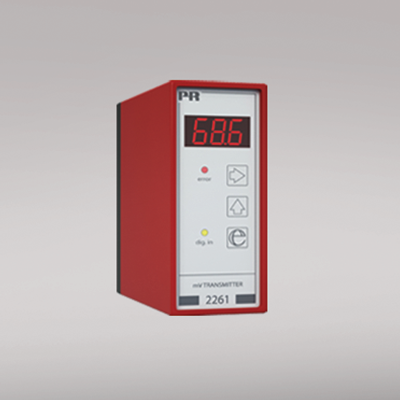

- A multifunction user interface consisting of three pushbuttons and a 3-digit LED display for programming.
Application
- The 2261 converts bipolar mV signals from transducers supplied directly by the device to standard current / voltage signals.
- The 2261 is suitable for load cell application as well as other applications such as tank filling and draining, weighing with a taring function, measurement of cable tensile force, level control, signal conversion / amplification etc.
Technical characteristics
- Front error LED.
- The analog input can be programmed for voltage in the range -40...100 mVDC.
- The digital signal can be selected as either NPN or PNP.
- Taring can either be by way of the digital input or from the front interface.
- The analog output can be programmed to current in the range 0...20 mA or voltage in the range 0...10 VDC.
- Short circuit protected transducer supply which can be programmed to 5...13 VDC from the front.
- Sense input (with transducer supply used) for compensation for cable resistance to the transducer.
- Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.
Environmental Conditions
Specifications range -20°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP50 Mechanical specifications
Dimensions (HxWxD) 80.5 x 35.5 x 84.5 mm (D is without pins) Weight approx. 130 g Common specifications
Supply voltage 19.2...28.8 VDC Max. power consumption 7.2 W Internal consumption 2.2 W Signal / noise ratio Min. 60 dB Response time (programmable) 0.06...999 s Updating time 20 ms Signal dynamics, input 17 bit Signal dynamics, output 16 bit Effect of supply voltage change < ±0.002% of span / %V Temperature coefficient < ±0.01% of span / °C Linearity error < 0.1% of span Auxiliary voltage: Transducer supply 5...13 VDC Load (max.) 230 mA EMC immunity influence < ±0.5% of span Input specifications
Max. offset 70% of selec. max. value Voltage input: Measurement range -40...100 mV Min. measurement range (span), voltage input 10 mV Input resistance, voltage input > 10 MΩ Overrange 0...999% of selected measurement range NPN, digital input Pull up 24 VDC / 6.9 mA PNP, digital input Pull down 0 VDC / 6.9 mA Trig level low, NPN/PNP < 6 VDC Trig level high, NPN/PNP > 10.5 VDC Pulse length > 30 ms Output specifications
Max. offset 50% of selected max. value Current output: Signal range 0...20 mA Min. signal range 5 mA Load (max.) 20 mA/600 Ω/12 VDC Load stability, current output ≤0.01% of span / 100 Ω Current limit < 23 mA Voltage output through internal shunt See manual for details *of span = of the presently selected range Approvals
EMC EN 61326-1 EAC TR-CU 020/2011 EN 61326-1
