Advanced features

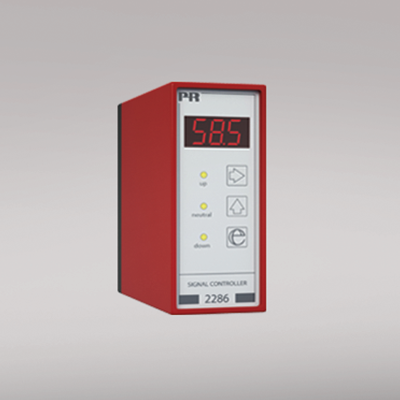

- Programmed via the user interface which consists of a 3-digit display and 3 function keys in the front panel.
Application
- PID on/off controller, PI step controller or 3-band controller with analog or Pt100 input.
- As trip amplifier with setpoint adjustment through external current / voltage signal with neutral zone surrounding the setpoint.
Technical characteristics
- The A and B channels can be freely programmed via the front keys and JP1 and JP2 to current in the range 0...20 mA or voltage in the range 0...10 VDC.
- Linearized Pt100 temperature input in the range with 3-wire connection.
- PID on/off controller with accurate setting of the regulation parameters XP (proportional band), TI (integrating time) and TD (differentiating time).
- Functions include PI step and-band controller, dl/dt function and comparator or trip amplifier with an external setpoint.
- 2 relay outputs with a make contact connected to a common point.
- Relay outputs can be installed in PELV/SELV circuits.
- Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.
Environmental Conditions
Specifications range -20°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP50 Mechanical specifications
Dimensions (HxWxD) 80.5 x 35.5 x 84.5 mm (D is without pins) Weight approx. 140 g Common specifications
Supply voltage 19.2...28.8 VDC Max. power consumption 3 W Internal consumption 2.5 W Isolation voltage, test / working 3.75 kVAC / 250 VAC Signal / noise ratio Min. 60 dB Response time < 60 ms Signal dynamics, input 20 bit Effect of supply voltage change < ±0.002% of span / %V Proportional band (XP) 0.01...999% Gain, 1/XP = 0.1...10000 Integrating time (TI) 0...999 s Differentiating time (TD) 0...999 s Neutral zone (nEU) 0...99.9 % Pulse time (TP) 0.01...400 s Min. pulse time (TP) 0.01...10 s Auxiliary voltages: Reference voltage 2.5 VDC ±0.5% / 15 mA Temperature coefficient < ±0.01% of span / °C Linearity error < 0.1% of span EMC immunity influence < ±0.5% Input specifications
Max. offset 50% of selected max. value Current input: Measurement range 0...20 mA Min. measurement range (span), current input 4 mA Input resistance, current input 50 Ω Voltage input: Measurement range 0...10 VDC Min. measurement range (span), voltage input 200 mV Input resistance, voltage input Nom. 10 MΩ RTD input Pt100 (2286B) Cable resistance per wire (max.), RTD 25 Ω Sensor current, RTD Nom. 1.25 mA Output specifications
Relay output: Relay functions Setpoint Max. voltage 250 VRMS Max. current 2 AAC Max. AC power 500 VA Max. load at 24 VDC 1 A *of span = of the presently selected range Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 PELV/SELV IEC 364-4-41 and EN 60742 EAC TR-CU 020/2011 EN 61326-1
