Applications
- Power can be connected to the DIN rail from supply terminals.
- Alternatively a powered DIN rail can supply power to the terminals
- Installation in ATEX Ex zone 2 / IECEx zone 2 / FM division 2.
- Suitable for environments with high vibration stress, e.g. ships.
Technical characteristics:

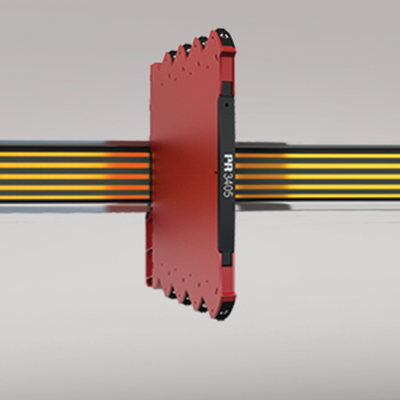

- 3405 can pass up to 2.5 A
- With 3405, up to 100 units can be powered.
Environmental Conditions
Specifications range -25°C to +70°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 113 x 6.1 x 115 mm Weight approx. 65 g DIN rail type DIN EN 60715/35 mm Wire size 0.13 x 2.5 mm2stranded wire Screw terminal torque 0.5 Nm Common specifications
Supply voltage 16.8...31.2 VDC Internal consumption 0.25 W (max.) Required external fuse 2.5 A Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 ATEX 2004/108/EC KEMA 10ATEX0147 X, II 3 G Ex nA IIC T4 Gc IECEx KEM 10.0068X FM 3041043-C UL UL 61010-1 DNV Marine Stand. f. Certific. No. 2.4 GL V1-7-2 EAC Ex TR-CU 012/2011 RU C-DK.GB08.V.00410
