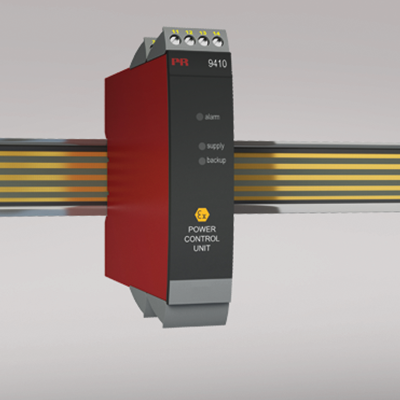

Application and advanced features
- The power control unit detects errors from any of the devices mounted on the power rail and transmits a collective alarm to the control system via the internal status relay.
- Optional connection of two power supplies - a primary supply and a backup supply.
- Redundant supply for the power rail can be obtained by mounting two 9410 devices connected to 2 separate power supplies (e.g. PR 9420).
Technical characteristics
- The status relay will be energised when the following three conditions are met:
1. Supply voltage is present on pins 31 and 32.
2. Backup supply voltage is present on pins 34 and 33. (If the backup supply is not in use, a jumper must be placed between pins 32 and 33 - the jumper is delivered with the device).
3. There are no error messages from the devices connected to the power rail. - When a collective alarm is activated via the power rail, the status relay in the 9410 will be de-energized (pins 11, 12 and 13).
- Two green front LEDs indicate connection of supply and backup.
- A red LED indicates error status.
Environmental Conditions
Specifications range -20°C to +60°C Storage temperature -20°C to +85°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm Weight approx. 140 g Wire size 0.13...2.08 mm2AWG 26...14 stranded wire Screw terminal torque 0.5 Nm Common specifications
Max. power consumption 96 W Internal consumption 2 W (max.) Efficiency > 97.9% Input specifications
Supply voltage 21.6...26.4 VDC (double / reinforced isolation) Backup supply 21.6...26.4 VDC Output specifications
Output voltage Input voltage-0.5 VDC (@ 4 A) Output power 96 W (max.) Output current 4 A (max.) Output ripple Same as input ripple Max. voltage, status relay 250 / 30 VDC Max. current, status relay 2 AAC / 2 ADC Max. AC power, status relay 500 VA / 60 W Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 ATEX 2004/108/EC KEMA 07ATEX0152 X IECEx KEM 08.0025X FM 3034431-C INMETRO NCC 12.1308 X UL UL 61010-1 EAC TR-CU 020/2011 EN 61326-1 DNV Marine Stand. f. Certific. No. 2.4
