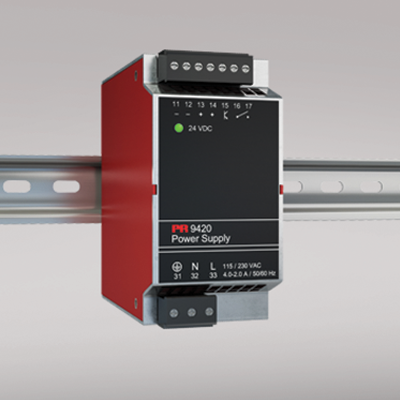

9420
Power supply
- Supply voltage 85...132 VAC or 187...264 VAC
- Optional connection of backup supply
- Approved for installation in I.S. / Ex zone 2 / Div. 2
- Active signal output
- Optional parallel connection
Manuals :
Data sheet :
Application
- 2 DC-OK outputs for monitoring of device functions.
- Floating signal contacts and an active DC-OK signal are available.
- The DC-OK LED enables visual evaluation of the function locally in the process.
Technical characteristics
- The 85...264 VAC connection is made by using pin no. 31, 32 and 33
- The 24 VDC connection is made using the “+” and “-“ connections.
- 22 VDC ±2 VDC is applied on “DC-OK” - pin 15, 20 mA max. This signal output is referenced to –Vout (gnd.) and signals when the output voltage drops between 18 and 22 VDC.
- Maximum 5 devices of the same type can be connected in parallel to enable increased output power.
- The DC-OK LED is a two colour LED which indicates the status of the output and enables visual evaluation of the function locally in the control cabinet.
- DC-OK LED green – normal operation. DC-OK LED red – output failure if input mains is still present.
Environmental Conditions
Specifications range -10°C to +60°C Storage temperature -20°C to +85°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 110 x 54 x 114 mm Weight approx. 700 g 260 g Wire size 0.5...2.50 mm2 / AWG 24...12 stranded wire Screw terminal torque 0.5 Nm Vibration IEC 60068-2-6: 1 g, 10...55 Hz, 3 axis sine sweep Shock, IEC 60068-2-27: 15 g, 3 axis half sine, 11 ms Common specifications
Max. power consumption 350 VA Fuse 4 A H / 250 VAC Inrush current, max. (at 25°C, <2 ms) 25.0 AAC Efficiency Typ. 88% Thermal overload protection Automatic restart Effect of supply voltage change < 0.5% (Vin. min....Vin. max.) Temperature coefficient 0.02%/°C Input specifications
Supply voltage 187...264 VAC or 85...132 VAC (auto-range) Frequency 50...60 Hz Output specifications
Output voltage 24 VDC Output power 120 W (max.) Output current 5 A Load stability (10%...max. load) < 0.5 % Output ripple ≤ 200 mV pk-pk (Vin nom. and Iout max.) Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 ATEX 2004/108/EC BUREAU VERITAS 08-002X CSA 1893479 UL UL 508
