Application
- Electronic temperature measurement in for instance control rooms, offices, heating plants, factories, living rooms, and similar dry rooms.
- Suitable as a transmitter for controllers, trip amplifiers, displays, or superior SCADA systems.
Technical characteristics
- A precision Pt100 sensor with a small mass is mounted on the transmitter input thereby achieving a fast response time.
- The 2-wire output signal of 4...20 mA is proportional and linear to the temperature value that influences the built-in sensor.
- A reversed output signal of 20...4 mA may be ordered.
- A number of different sensor error detection options may be ordered.
- Protected against polarity reversal.

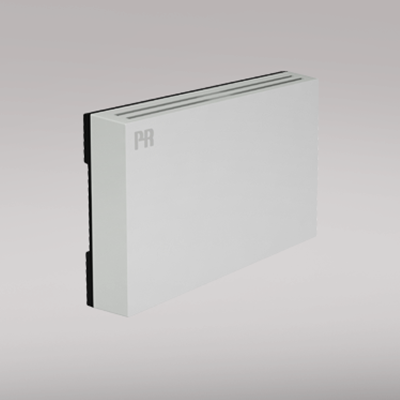

- The bottom of the cabinet can be attached to a wall by two screws.
- Visible or hidden cable access.
Environmental Conditions
Specifications range 0°C to +70°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP30 Mechanical specifications
Dimensions (HxWxD) 70 x 121 x 25 mm Weight approx. 95 g Wire size 1 x 1.5 mm Common specifications
Supply voltage 8.0...35 VDC Internal consumption 25 mW…0.8 W Voltage drop 8.0 VDC Warm-up time 5 min. Signal / noise ratio Min. 60 dB Response time 10 s (@ 0.5 m/s) Signal dynamics, input 17 bit Signal dynamics, output 16 bit Effect of supply voltage change < 0.005% of span / VDC Temperature coefficient < ±0.01% of span / °C Linearity error < 0.1% of span EMC immunity influence < ±0.5% Input specifications
Max. offset 50% of max.°C Measurement range 0...70°C Min. measurement range 25°C (span) Sensor current, RTD > 0.2 mA, < 0.4 mA Output specifications
Max. offset 20% of max. mA Current output: Signal range 4…20 mA Min. signal range 16 mA Updating time 135 ms Load resistance, current output ≤ (Vsupply - 8) / 0.023 [Ω] Load stability, current output ≤0.01% of span / 100 Ω NAMUR NE 43 Upscale/Downscale 23 mA / 3.5 mA *of span = of the presently selected range Approvals
EMC EN 61326-1 EAC TR-CU 020/2011 EN 61326-1
