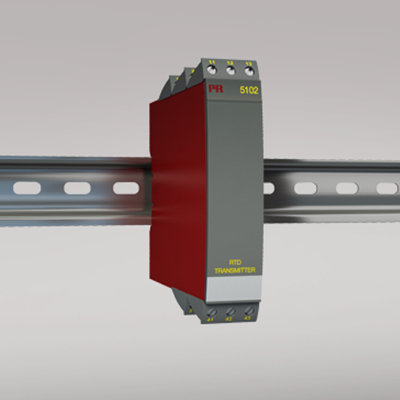

5102
RTD transmitter
- Cost effective RTD transmitter
- Input for Pt100, Ni100 or Ohm
- Linearized analog output
- 1- or 2-channel version
- DIN rail mounting
Manuals :
Data sheet :
Advanced features
- The 5102 transmitter can be configured with the software program PReset 5000 using a DOS-based PC and the Loop Link communications unit.
Application
- Linearized temperature measurement with Pt100 (to IEC 715) or Ni100 (to DIN 43760) sensors.
- Conversion of linear resistance change to standard analog current/voltage signal from for example valves or linear movements with attached potentiometer.
- Signal simulator via externally mounted 10-turn potentiometer, to aid with installation and commissioning the plant.
- 3-wire connection cable compensation or 2-wire connection without cable compensation.
- Sensor error detection with Upscale, Downscale or custom set values.
- Reversible inputs with 0% set to maximum value of the desired input range and 100% set to the minimum value of the desired input range.
Technical characteristics
- Analog current output can be configured to any current within 0...20 mA range.
- Voltage output range is selectable between 0...10 VDC and 0...1 VDC by use of internal jumpers.
- Programming can be performed with or without a power supply.
Environmental Conditions
Specifications range -40°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm Weight approx. 170 g DIN rail type DIN 46277 Screw terminal torque 0.5 Nm Common specifications
Supply voltage 19.2...28.8 VDC Internal consumption 1.7 W (2 channels) Warm-up time < 5 min. Communications interface Loop Link Signal / noise ratio Min. 60 dB Signal dynamics, input 17 bit Signal dynamics, output 16 bit Response time (0...90%, 100...10%) < 165 ms Temperature coefficient < ±0.01% /°Camb. Linearity error < 0.1% of span EMC immunity influence < ±0.5% of span Input specifications
Max. offset 50% of selected max. value RTD input Pt100, Ni100, lin. R Cable resistance per wire (max.), RTD 10...50 Ω (programmable) Sensor current, RTD > 0.2 mA, < 0.4 mA Sensor error detection, RTD Upscale Output specifications
Max. offset 50% of selected max. value Current output: Signal range 0...20 mA Min. signal range 5 mA Voltage output: signal range 0...10 VDC Voltage output, min. signal range 250 mV Load (max.) 20 mA/600 Ω/12 VDC Load stability, current output ≤0.01% of span / 100 Ω Current limit ≤ 28 mA *of span = of the presently selected range Approvals
EMC EN 61326-1 EAC TR-CU 020/2011 EN 61326-1
