Advanced features

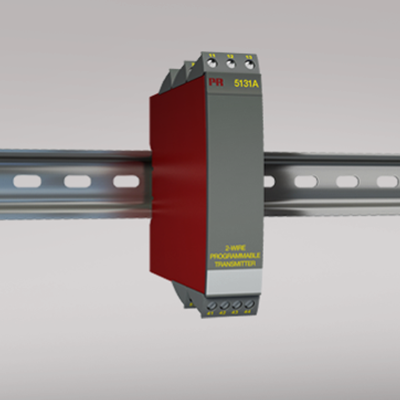

- The 5131A transmitter can be configured with the software program PReset using a standard PC and the Loop Link communications unit.
Application
- Independent channel jumper selectable inputs for current/voltage or temperature.
- Current input programmable in range 0...100 mA and voltage inputs in range 0...250 VDC.
- Linearized, electronic temperature measurement with RTD or TC sensor.
- Conversion of linear resistance variation to a standard analog current / voltage signal, for example from solenoids and butterfly valves or linear movements with attached potentiometer.
- 4- or 3-wire connection automatic cable compensation or 2-wire connection with programmable cable compensation.
- Configurable sensor error detection including NAMUR NE43.
Technical characteristics
- Analog current output can be configured to any current within 0...20 mA range.
- Voltage output range is selectable between 0...10 VDC.
- Programming can be performed with or without a power supply.
- The 2-channel version has full galvanic isolation between the channels.
- Separation of circuits in PELV/SELV installations.
Environmental Conditions
Specifications range -20°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm Weight approx. 195 g DIN rail type DIN 46277 Wire size 1 x 2.5 mm2 stranded wire Screw terminal torque 0.5 Nm Common specifications
Supply voltage 7.5...35 VDC Fuse 50 mA SB / 250 VAC Isolation voltage, test / working 3.75 kVAC / 250 VAC Communications interface Loop Link Signal / noise ratio Min. 60 dB (0...100 kHz) Signal dynamics, input 22 bit Signal dynamics, output 16 bit Updating time 115 ms (temperature input) 75 ms (mA / V / mV input) Response time (0...90%, 100...10%): Temperature input (programmable) 400 ms...60 s mA / V input (programmable) 250 ms...60 s EMC immunity influence < ±0.5% of span Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% of span Effect of supply voltage change < 0.005% of span / VDC Input specifications
Max. offset 50% of selected max. value RTD input Pt100, Ni100, lin. R Cable resistance per wire (max.), RTD 10 Ω Sensor current, RTD Nom. 0.2 mA Effect of sensor cable resistance (3-/4-wire), RTD < 0.002 Ω / Ω Sensor error detection, RTD Yes TC input: Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR Cold junction compensation (CJC) < ±1.0°C Sensor error current, TC Nom. 30 μA Sensor error detection, TC Yes Current input: Measurement range 0...100 mA Min. measurement range (span), current input 4 mA Input resistance: Supplied unit Nom. 10 Ω + PTC 10 Ω Input resistance: Non-supplied unit RSHUNT = ∞, VDROP < 6 V Voltage input: Measurement range -150...+150 mV 0...250 VDC Min. measurement range (span), voltage input 5 mV Input resistance, voltage input Nom. 10 MΩ (≤ 2.5 VDC) Nom. 5 MΩ (> 2.5 VDC) Output specifications
Max. offset 50% of selected max. value Current output: Signal range 4…20 mA Min. signal range 10 mA Load resistance, current output ≤ (Vsupply -7.5)/0.023 [Ω] Load stability, current output ≤0.01% of span / 100 Ω Current limit ≤ 28 mA Sensor error indication, current output Programmable 3.5…23 mA NAMUR NE 43 Upscale/Downscale 23 mA / 3.5 mA *of span = of the presently selected range Approvals
EMC EN 61326-1 LVD 2006/95/EC EN 61010-1 PELV/SELV IEC 364-4-41 and EN 60742 ATEX 2004/108/EC DEMKO 99ATEX124572
