Application
- Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
- Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
Technical characteristics
- Within a few seconds the user can program PR6333A to measure temperatures within all RTD ranges defined by the norms.
- The RTD and resistance inputs have cable compensation for 3-wire connection.
- A limit can be programmed on the output signal.
Mounting / installation

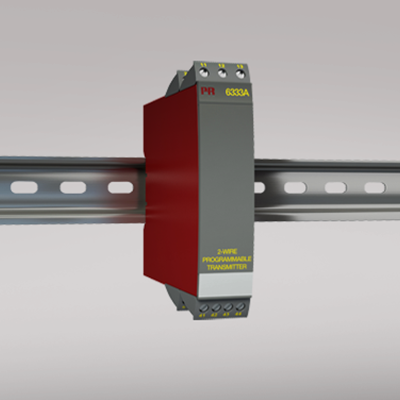

- Mounted vertically or horizontally on a DIN rail. Using the 2-channel version up to 84 channels per meter can be mounted.
Environmental Conditions
Specifications range -40°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm Weight (1 / 2 channels) 145 / 185 g Wire size 1 x 2.5 mm2 stranded wire Common specifications
Supply voltage 8.0...35 VDC Internal consumption 0.19...0.8 W Voltage drop 8.0 VDC Isolation voltage, ch. 1 / ch. 2 3.75 kVAC Warm-up time 5 min. Communications interface Loop Link Signal / noise ratio Min. 60 dB Accuracy Better than 0.1% of selected range Response time (programmable) 0.33...60 s Signal dynamics, input 19 bit Signal dynamics, output 16 bit Effect of supply voltage change < 0.005% of span / VDC EMC immunity influence < ±0.5% of span Input specifications
Max. offset 50% of selected max. value RTD input Pt100, Ni100, lin. R Cable resistance per wire (max.), RTD 10 Ω Sensor current, RTD > 0.2 mA, < 0.4 mA Effect of sensor cable resistance (3-wire), RTD < 0.002 Ω / Ω Sensor error detection, RTD Yes Output specifications
Current output: Signal range 4…20 mA Min. signal range 16 mA Updating time 135 ms Load resistance, current output ≤ (Vsupply - 8) / 0.023 [Ω] Load stability, current output ≤0.01% of span / 100 Ω Sensor error indication, current output Programmable 3.5…23 mA NAMUR NE 43 Upscale/Downscale 23 mA / 3.5 mA *of span = of the presently selected range Approvals
EMC EN 61326-1 ATEX 2004/108/EC KEMA 10ATEX0007 X EAC TR-CU 020/2011 EN 61326-1
