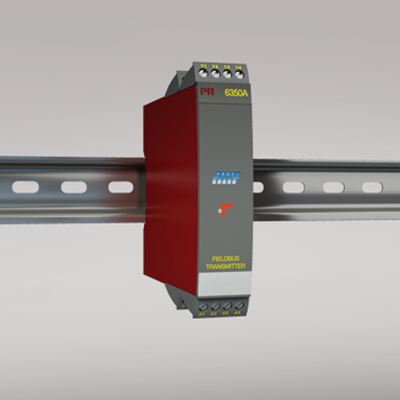

6350A
Profibus PA / Foundation Fieldbus transmitter
- PROFIBUS® PA ver. 3.0
- FOUNDATION™ Fieldbus ver. ITK 4.6
- Automatic switch between protocols
- Basic or LAS capability with F.F.
- 1- or 2-channel version
Manuals :
Data sheet :
Application
- Linearized temperature measurement with RTD or TC sensor.
- Difference, average or redundancy temperature measurement with RTD or TC sensor.
- Converts analog mA signals into digital values on the bus communication.
- Linear resistance, potentiometer and bipolar mV measurement.
Technical characteristics
- Bus transmitter with both PROFIBUS® PA and FOUNDATION™ Fieldbus communication. A unique switch function ensures automatic shift between the two protocols.
- Set-up for PROFIBUS® PA can be done via Siemens Simatic® PDM®, ABB Melody / Harmony and Metso DNA software and for FOUNDATION™ Fieldbus via Emerson DeltaV, Yokogawa CS 1000 / CS 3000, ABB Melody / Harmony and Honeywell Experion software.
- Built-in simulation mode function.
- Polarity-independent bus connection.
- 24 bit A/D converter ensures high resolution.
- PROFIBUS® PA function blocks:
2 analog. - FOUNDATION™ Fieldbus function blocks:
2 analog and 1 PID. - FOUNDATION™ Fieldbus capability:
Basic or LAS.
Mounting / installation
- Mounted vertically or horizontally on a DIN rail. Using the 2-channel version up to 84 channels per meter can be mounted.
Environmental Conditions
Specifications range -40°C to +60°C Calibration temperature 20...28°C Relative humidity < 95% RH (non-cond.) Protection degree IP20 Mechanical specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm Weight (1 / 2 channels) 145 / 185 g DIN rail type DIN 46277 Wire size 1 x 2.5 mm2 stranded wire Screw terminal torque 0.5 Nm Common specifications
Supply voltage 9.0...32 VDC Internal consumption, per channel < 11 mA Isolation voltage, test 1.5 kVAC for 60 s Isolation voltage, working 50 VRMS / 75 VDC Warm-up time 30 s Signal / noise ratio Min. 60 dB Accuracy Better than 0.05% of selected range Response time (programmable) 1...60 s Updating time < 400 ms Execution time, PID controller < 200 ms Execution time, analog input < 50 ms Signal dynamics, input 24 bit EMC immunity influence < ±0.1% of reading Extended EMC immunity: NAMUR NE 21, A criterion, burst < ±1% of reading Input specifications
RTD input Pt25…1000, Ni25…1000, Cu10…1000, lin. R, potentiometer Cable resistance per wire (max.), RTD 50 Ω Sensor current, RTD Nom. 0.2 mA Effect of sensor cable resistance (3-/4-wire), RTD < 0.002 Ω / Ω Sensor error detection, RTD Yes Short circuit detection, RTD < 15 Ω TC input: Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5 Cold junction compensation (CJC) < ±0.5°C Sensor error detection, TC Yes Sensor error current: When detecting / else Nom. 2 μA / 0 μA Short circuit detection, TC < 3 mV Bipolar current input: Measurement range -100…+100 mA Input resistance, current input 10 Ω + PTC < 20 Ω Bipolar voltage input: Measurement range -800…+800 mV Min. measurement range (span), voltage input 2.5 mV Input resistance, voltage input 10 MΩ Short circuit detection, voltage input < 3 mV Output specifications
PROFIBUS PA protocol Profile A&B, ver. 3.0 PROFIBUS PA protocol standard EN 50170 vol. 2 PROFIBUS PA address (at delivery) 126 PROFIBUS PA function blocks 2 analog FOUNDATION™ Fieldbus protocol FF protocol FOUNDATION™ Fieldbus protocol standard FF design specifications FOUNDATION™ Fieldbus version ITK 4.6 FOUNDATION™ Fieldbus capability Basic or LAS FOUNDATION™ Fieldbus function blocks 2 analog and 1 PID Approvals
EMC EN 61326-1 ATEX 2004/108/EC KEMA 03ATEX1013 X FM 3015609 CSA 1418937 EAC TR-CU 020/2011 EN 61326-1
