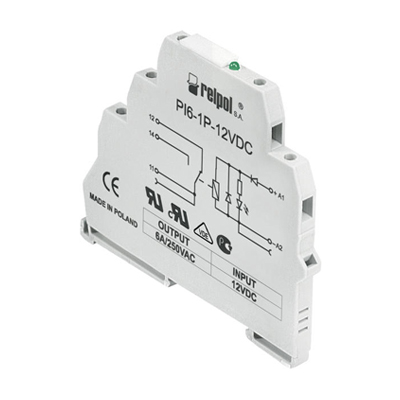

Relay PI6-1P
Contacts: 1CO; rated load AC1 – 6 A/250 V AC; input voltage DC or AC/DC; 35 mm rail mount; LED green
|
Contact data |
||
|
Number and type of contacts |
1C/O |
|
|
Contact material |
AgSnO2, AgSnO2/Au 3 µm |
|
|
Rated / max. switching voltage |
AC |
250 V / 400 V (AgSnO2) |
|
Rated load (capacity) |
AC1 |
6 A / 250 V AC (AgSnO2) |
|
DC1 |
6 A / 24 V DC (AgSnO2) |
|
|
Rated current |
6 A (AgSnO2) |
|
|
Max. breaking capacity |
AC1 |
1 500 VA (AgSnO2) |
|
Coil data |
||
|
Rated voltage |
DC |
12 ... 36 V |
|
AC: 50/60 Hz AC/DC |
24 ... 230 V |
|
|
Rated power consumption |
DC |
0,3...0,7 W |
|
AC/DC |
0,3...1,6 VA / 0,3...1,6 W |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- input - output - mass - input, output - contact clearance |
4 000 V AC |
|
|
2 500 V AC |
||
|
1 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
> 0,6 x 105 6 A, 250 V AC |
|
Mechanical life (cycles) |
> 2 x 107 |
|
|
Ambient temperature operating |
-40...+55 oC |
|
|
12, 24 V DC |
-40...+60 oC |
|
|
230 V AC |
-40...+40 oC |
|
|
230 V DC |
-40...+50 oC |
|
