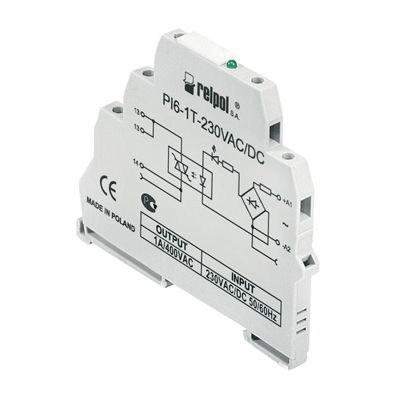

Relay PI6-1T
Output: triac (T); rated load - 1,2 A/400 V AC, input voltage DC or AC/DC; width 6,2 mm.; 35 mm rail mount; LED green
|
Contact data |
||
|
Number and type of contacts |
1 NO |
|
|
Rated / max. switching voltage |
AC |
400 V / 440 V |
|
Rated load (capacity) |
AC1 |
1,2 A / 400 V AC |
|
Rated current |
1,2 A |
|
|
Coil data |
||
|
Rated voltage |
DC |
5...32 V |
|
AC: 50/60 Hz AC/DC |
24 ... 230 V |
|
|
Rated power consumption |
DC |
0,3 W 5...32 V DC at 24 V |
|
AC/DC |
0,3 VA / 0,3 W 24 V AC/DC |
|
|
AC/DC |
1,6 VA / 1,6 W 230 V AC/DC |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- input - output |
4 000 V AC |
|
|
General data |
||
|
Ambient temperature operating |
-40...+55 oC |
|
