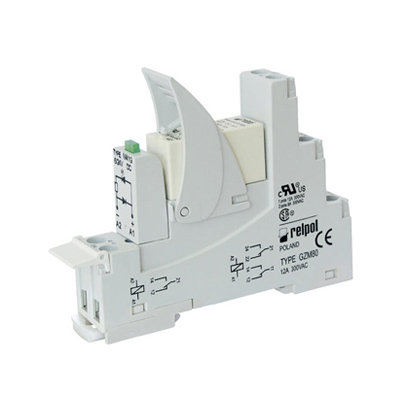

Relay PI85 with socket GZM80
Contacts: 1CO; rated load AC1 – 16 A/250 V AC; coils AC or DC; 35 mm rail mount or on panel mounting; LED green; (set: RM85, GZM80, signaling modules type M, spring wire clips)
|
Contact data |
||
|
Number and type of contacts |
1C/O |
|
|
Contact material |
AgNi |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
16 A / 250 V AC |
|
DC1 |
16 A / 24 V DC |
|
|
Rated current |
16 A |
|
|
Max. breaking capacity |
AC1 |
4 000 VA |
|
Coil data |
||
|
Rated voltage |
50/60 Hz AC |
12 ... 230 V |
|
DC |
12 ... 110 V |
|
|
Rated power consumption |
AC |
0,75 VA |
|
DC |
0,4 … 0,48 W |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance |
5 000 V AC |
|
|
1 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
> 0,7 x 105 16 A, 250 V AC |
|
Mechanical life (cycles) |
> 3 x 107 |
|
|
Ambient temperature operating |
AC |
-40...+70 oC |
|
DC |
-40...+85 oC |
|
