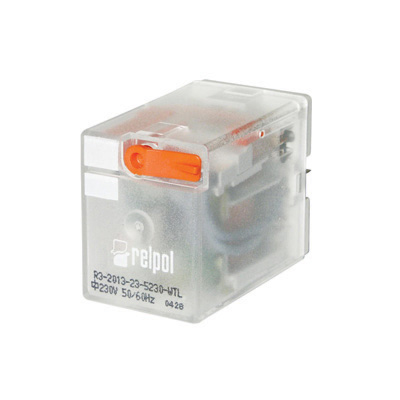

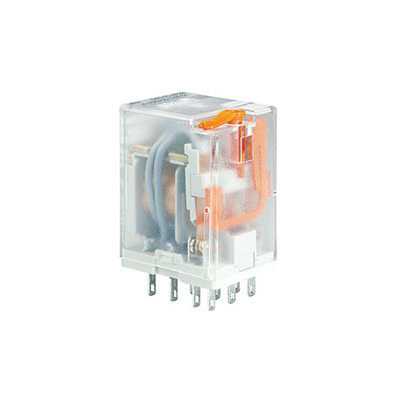

Relay R3
Contacts: 3 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
|
Contact data |
||
|
Number and type of contacts |
3 C/O |
|
|
Contact material |
AgNi, AgNi/Au 0,2 µm |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
10 A / 250 V AC |
|
DC1 |
10 A / 24 V DC |
|
|
Rated current |
10 A |
|
|
Max. breaking capacity |
AC1 |
2 500 VA |
|
Coil data |
||
|
Rated voltage |
AC 50/60 Hz |
6 ... 240 V |
|
DC |
5 ... 220 V |
|
|
Rated power consumption |
AC |
1,6 VA |
|
DC |
0,9 W |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts- contact clearance- pole - pole |
2 500 V AC |
|
|
1 500 V AC |
||
|
2 500 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
≥105 10 A, 250 V AC |
|
Mechanical life (cycles) |
≥ 2 x 107 |
|
|
Ambient temperature operating |
AC |
-40...+55 oC |
|
DC |
-40...+70 oC |
|
|

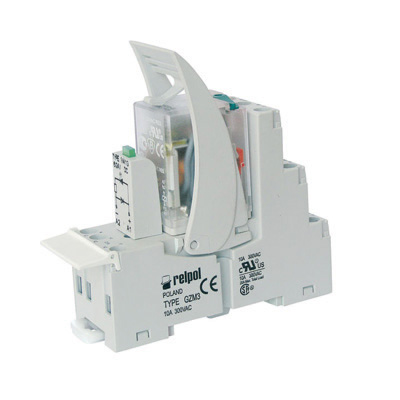

Sockets |
GZT3, GZM3 |
|
|
Accessories for sockets |
Signaling / protecting modules type M |
|
