Relpol
Industrial Relay

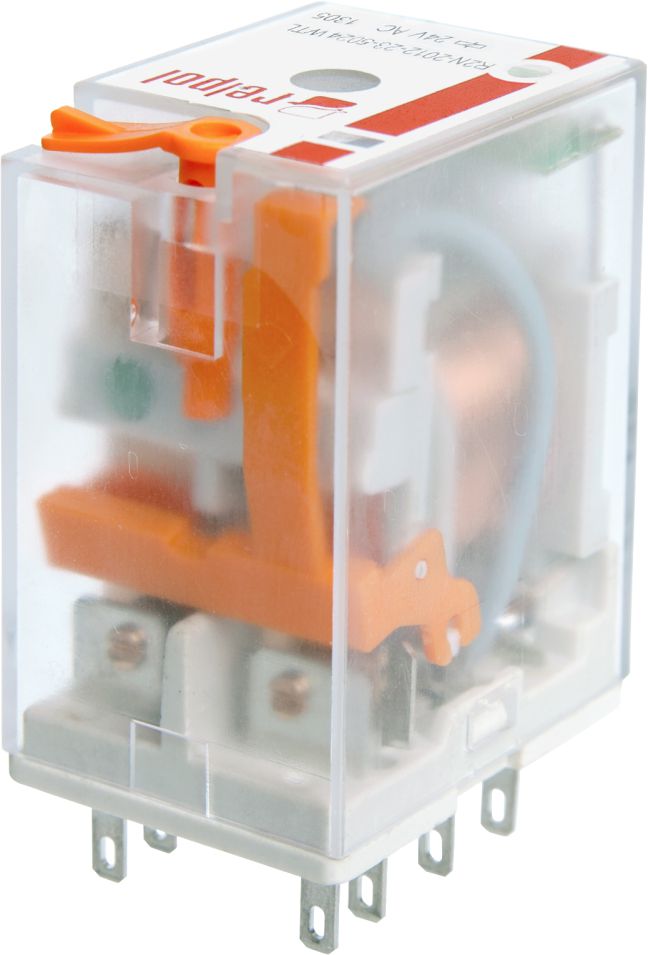

Relay R2N
Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
---------------------------------------------------------------------------------------------------------------------------------

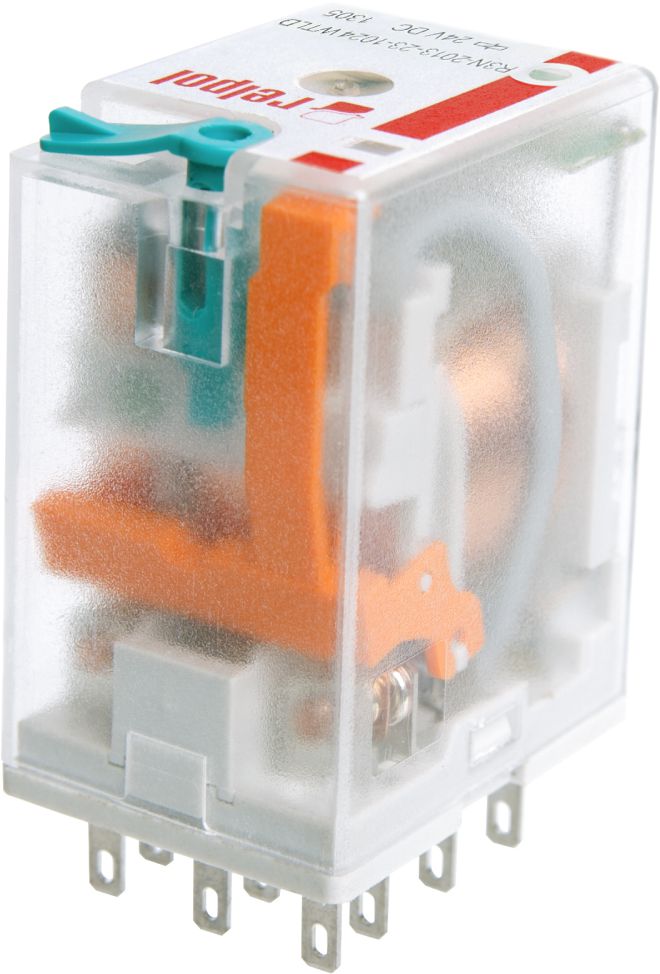

Relay R3N
Contacts: 3 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
---------------------------------------------------------------------------------------------------------------------------------

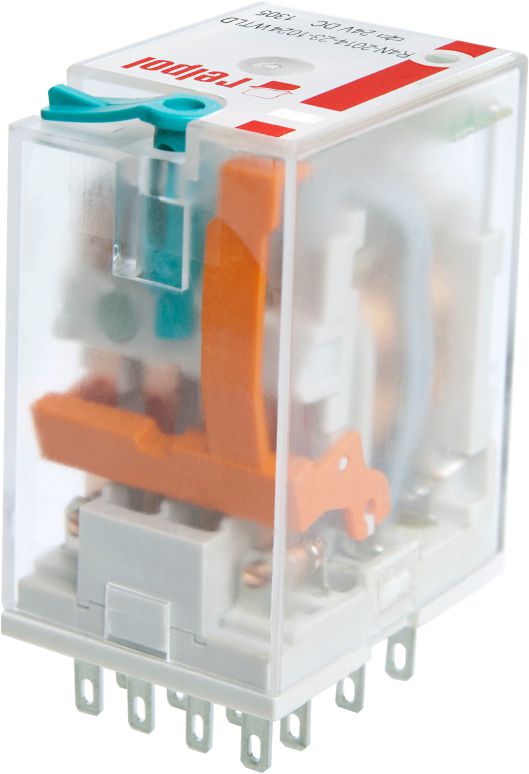

Relay R4N
Contacts: 4 CO; rated load AC1 - 7 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
---------------------------------------------------------------------------------------------------------------------------------

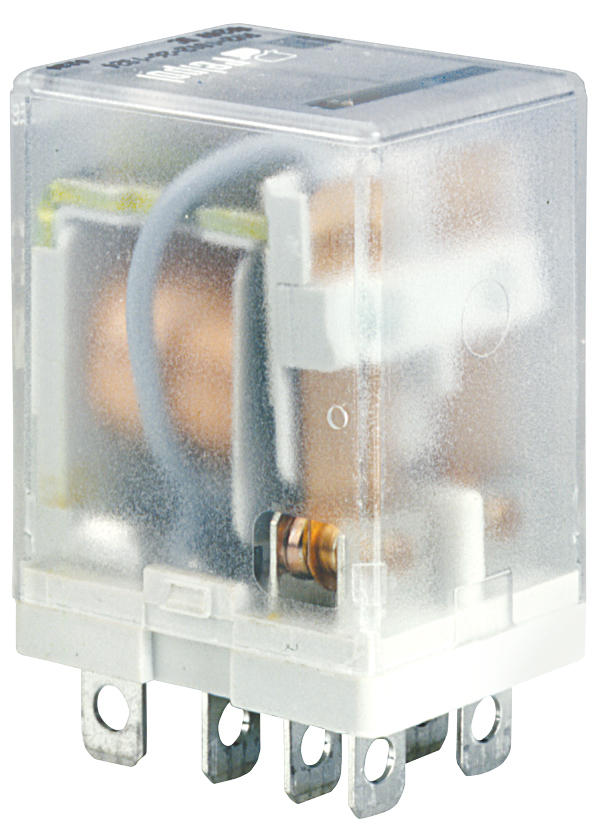

Relay RY2
Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for flat insert connectors and plug-in sockets; light indicator LED (option); diode D (option)
---------------------------------------------------------------------------------------------------------------------------------

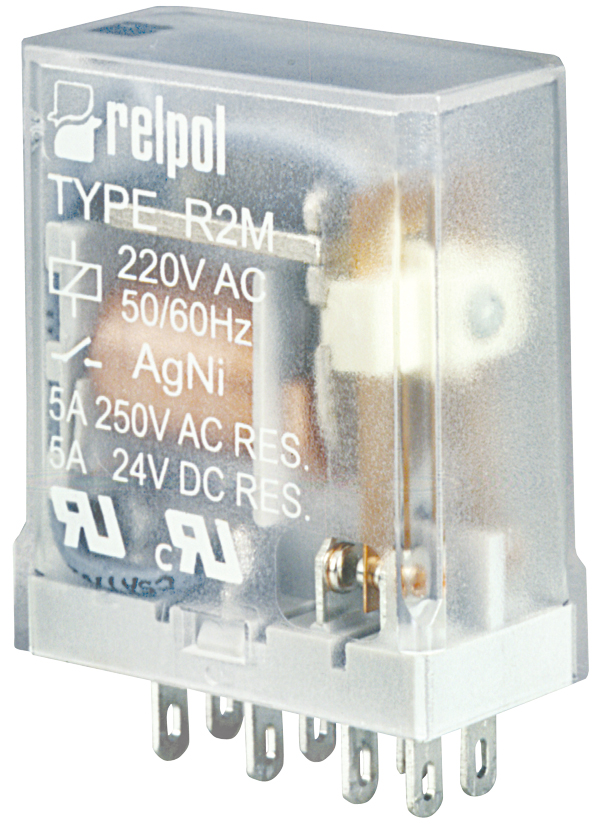

Relay R2M
Contacts: 2 CO; rated load AC1 - 5 A/250 V AC; coils AC or DC; for plug-in sockets and PCB
---------------------------------------------------------------------------------------------------------------------------------

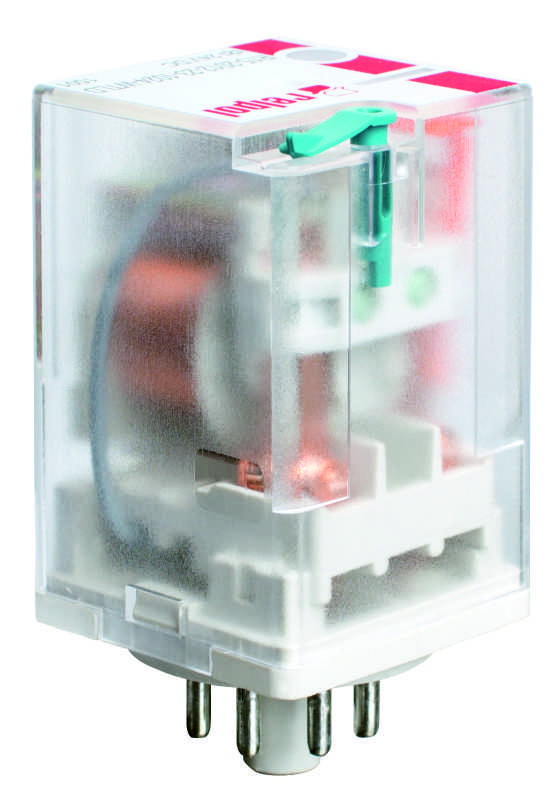

Relay R15 2 CO
Contacts: 2 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)
---------------------------------------------------------------------------------------------------------------------------------

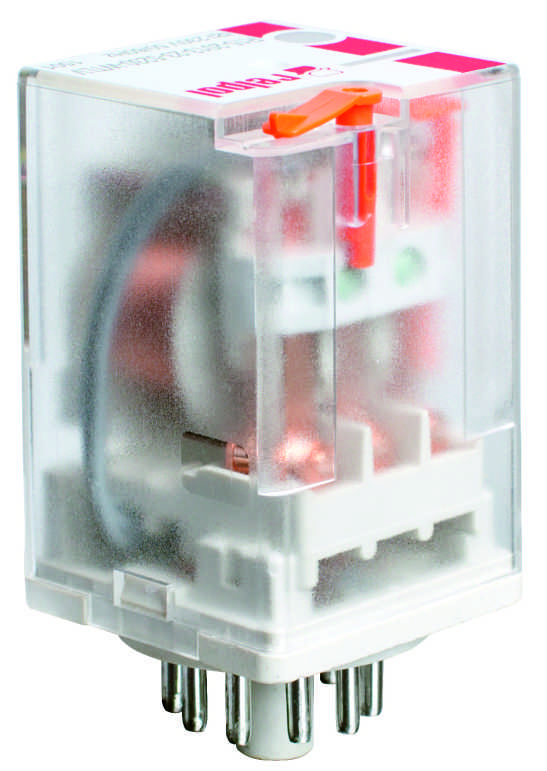

Relay R15 3 CO
Contacts: 3 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)
---------------------------------------------------------------------------------------------------------------------------------

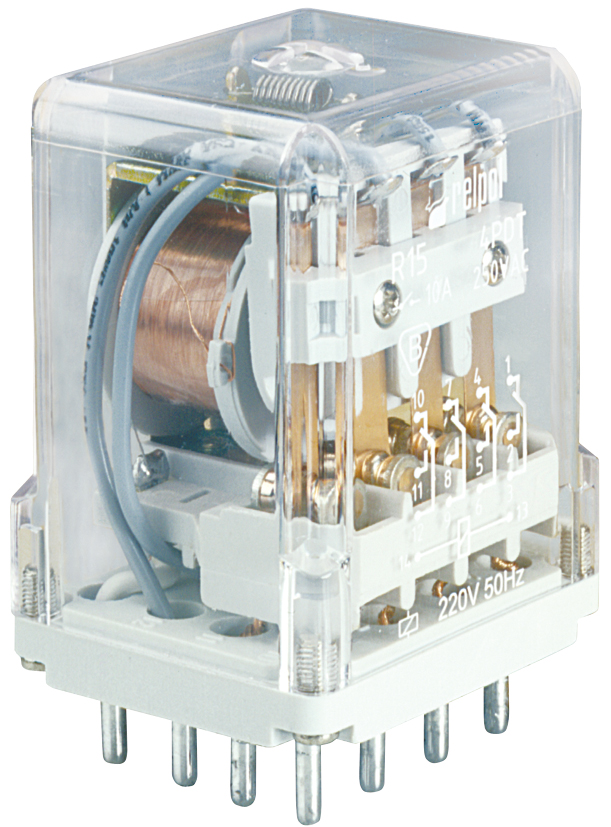

Relay R15 4 CO
Contacts: 4 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)
---------------------------------------------------------------------------------------------------------------------------------

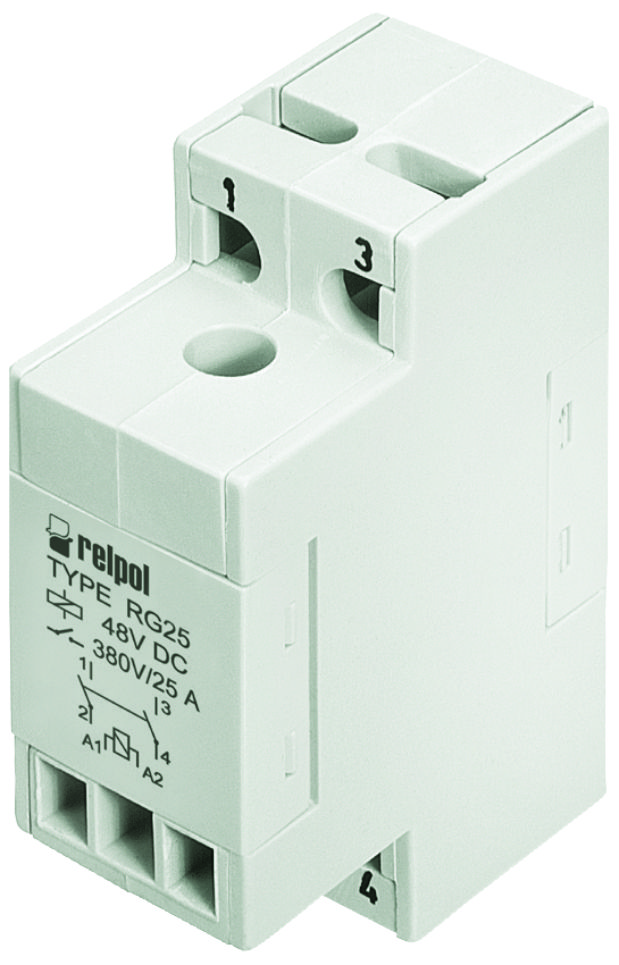

Relay RG25
Contacts: 2 NO; rated load AC1 - 25 A/400 V AC; coils AC or DC; high insulation dielectric strength; 35 mm rail mount
---------------------------------------------------------------------------------------------------------------------------------
Relay RUC
Contacts: 2 CO, 3 CO, 2 NO, 3 NO or 2 NO, 3 NO (with contact gap 3 mm); rated load AC1 – 16 A/250 V AC or 10 A/400 V AC; coils AC or DC; indicator LED (option); test button (option)
---------------------------------------------------------------------------------------------------------------------------------
Relay RUC-M
Magnetic blow-out relays for high DC load; contacts: 1 NO (double-break), 2 NO; rated load DC1 – (1NO) 12 A/220 V DC, (2NO) 4,5 A/220 V DC; coils AC or DC; indicator LED (option)
---------------------------------------------------------------------------------------------------------------------------------
Relay R20
Contacts: 1NO, 2NO; rated load AC1 – 30 A/250 V AC or 25 A/250 V AC; coils AC or DC; for flat insert connectors
---------------------------------------------------------------------------------------------------------------------------------
Relay R30N
Contacts: 1CO, 1NO; rated load AC1 (1NO) 30 A /240 V AC; for PCB; DC coils of up to 110 V DC, High load 30 A
---------------------------------------------------------------------------------------------------------------------------------
Relay R40N
Contacts: 1CO, 1NO; rated load AC1 – (1NO) 40 A / 240 V AC; for PCB; AC coils - of up to 220 V AC, DC coils - of up to 110 V DC; High load 40 A
---------------------------------------------------------------------------------------------------------------------------------
