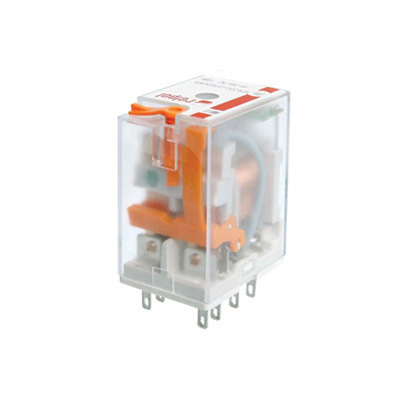

Relay R2N

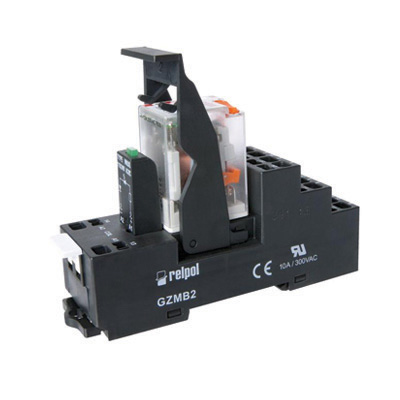

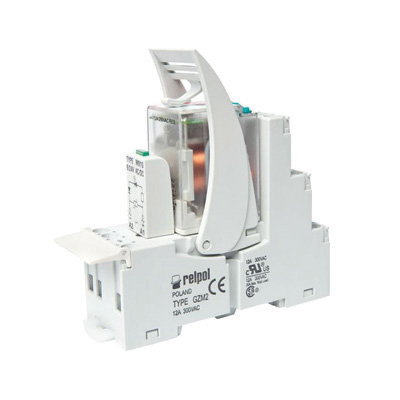

Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
|
Contact data |
|
|
Number and type of contacts |
2 CO |
|
Rated / max. switching voltage AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1: 12 A / 250 V AC; DC1: 12 A / 24 V DC |
|
Coil data |
|
|
Rated voltage |
AC 50/60 Hz: 6, 12, 24, 42, 48, 60, 80, 110, 115, 120, 127, 220, 230, 240 V; DC: 5, 6, 12, 24, 48, 60, 80, 110, 125, 220 V |
|
Rated power consumption |
AC: 1,6 VA; DC: 0,9 W |
|
General data |
|
|
Electrical life resistive AC1 |
>105 12 A, 250 V AC |
|
Mechanical life (cycles) |
> 2 x 107 |
|
Ambient temperature operating |
AC: -40...+55 oC; DC: -40...+70 oC |
