DBL Power Distribution blocks

The clever distribution concept

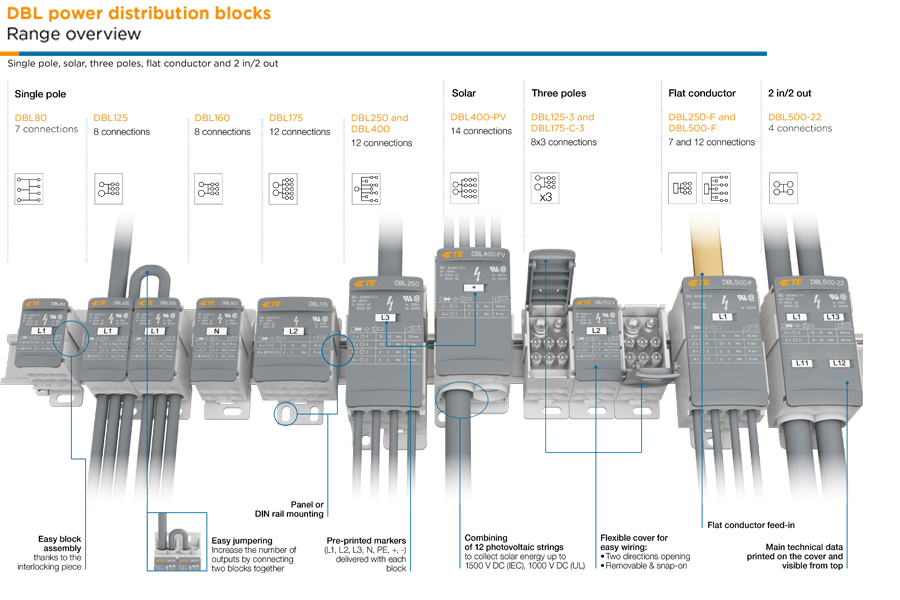

The exclusive compact and modular design of our power distribution
blocks allows easy installation combined with a great flexibility of use.

Main benefits

Easy to install

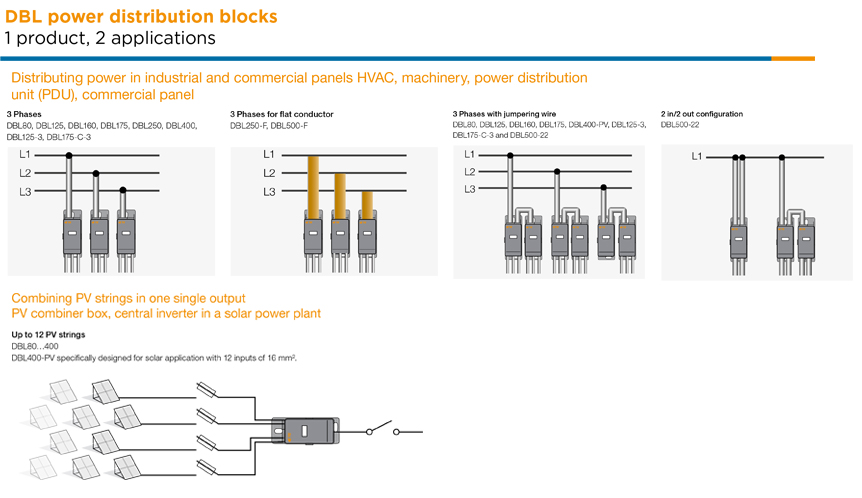

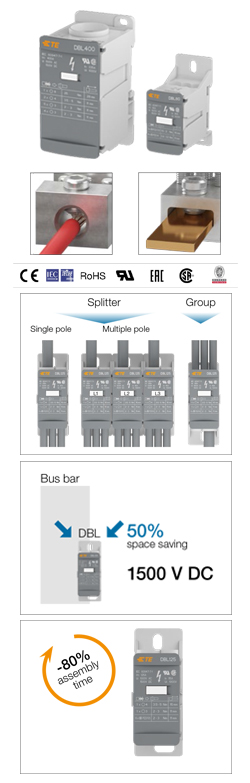

3 configurations in 1 product:
Single pole splitter: split of power main input into several outputs
Multiple poles splitter: interlocking function and ready to use marking kit (L1, L2, L3, N, PE, +, - ) delivered with each block
Grouping: of several inputs into 1 output (solar application).
Flexible cover facilitates identification & wiring:
- Reversible, two directions opening, snap-on
- All wiring data’s and specifications visible on top.



Space saving

Panel space saving:
Save up to 50 % rail space compare to conventional distribution bars thanks to our modular compact design
1 500 V DC:
Voltage rating adapted to most recent solar inverters requirements.



Increased productivity

Reduced wiring, inventories, hardware and assembly costs:
- Reduce assembly time by 80 % compared to conventional systems.
- Our modular and touch proof concept eliminates the needs for bus bars, isolators, fasteners, protection screens…
- Accept aluminum & copper conductors
- 1 product in stock for 3 possible configurations.

Download Power Distribution Terminal Block Catalog
