Spring Clamp Technology

Spring Clamp Technology

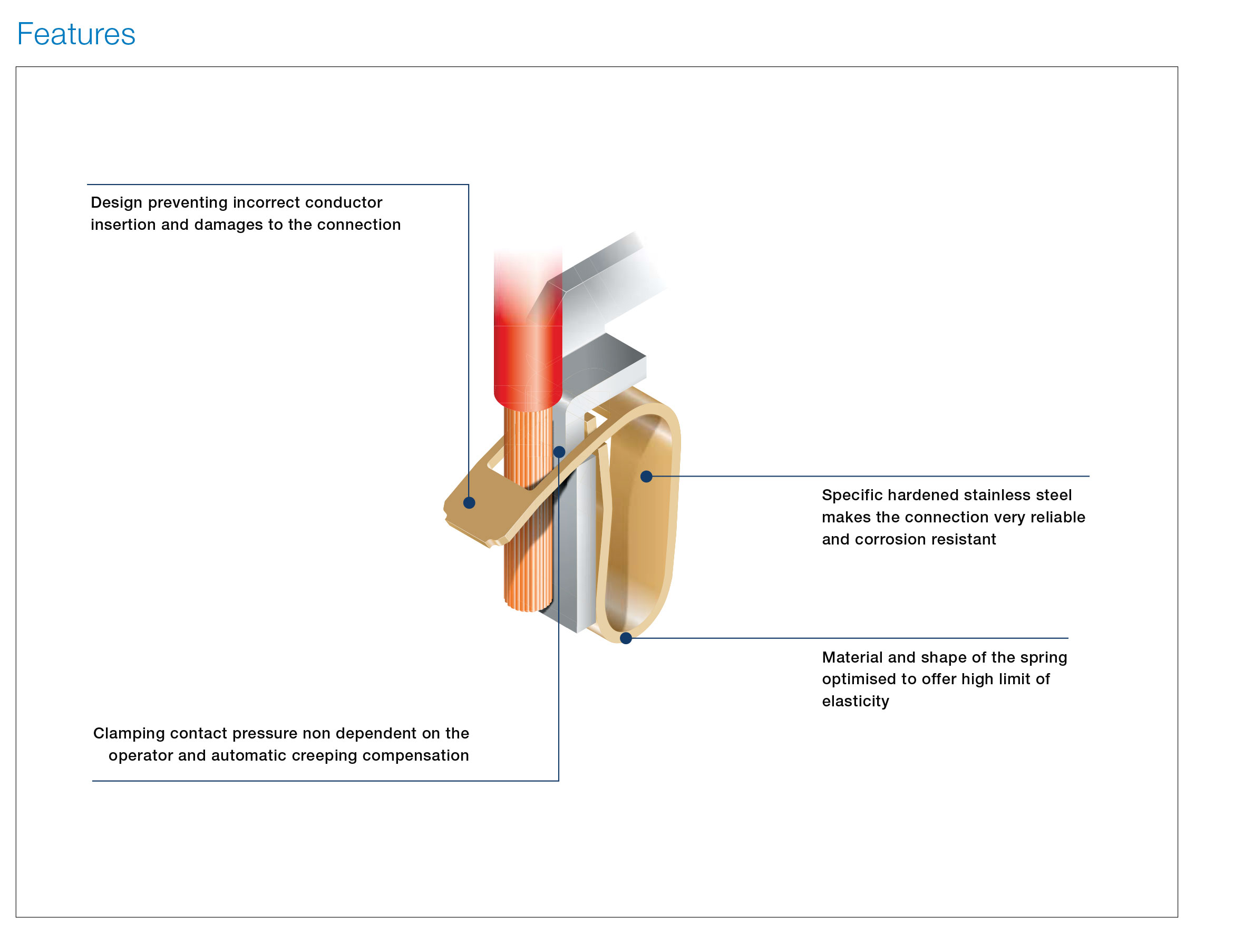

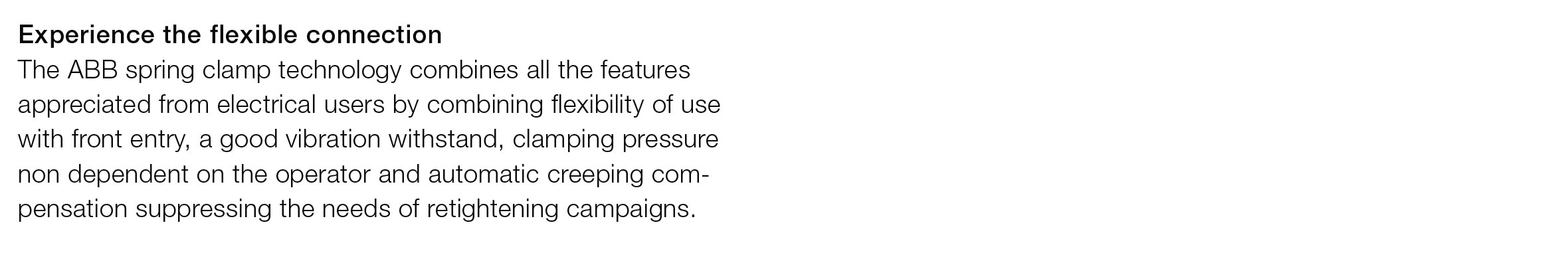

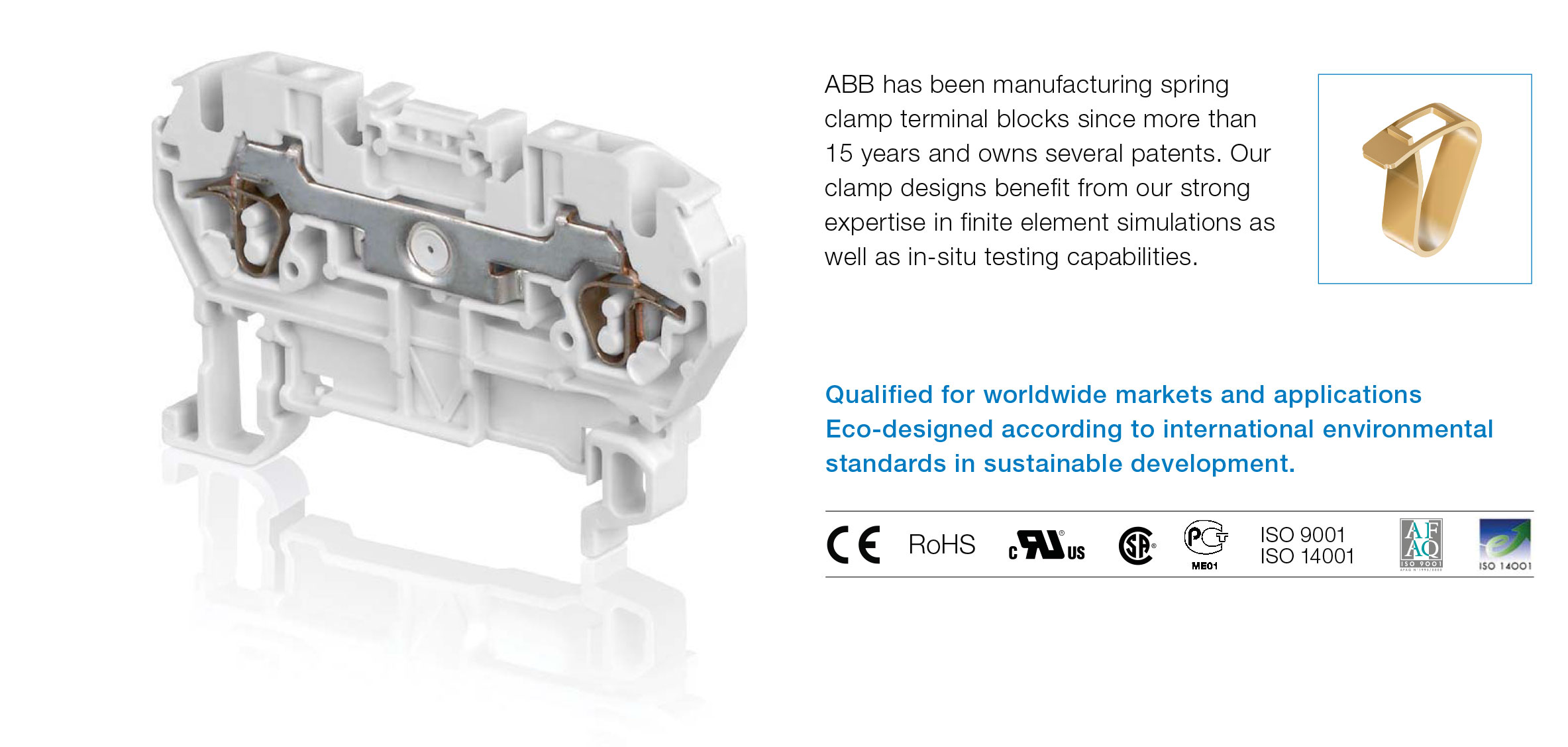

The ABB spring clamp technology combines all the features appreciated from electrical users by combining flexibility of use with front entry, a good vibration withstand, clamping pressure non dependent on the operator and automatic creeping compensation suppressing the needs of retightening campaigns.

Features

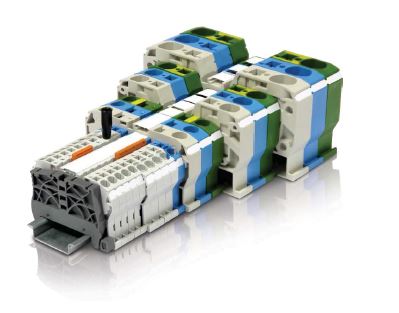

Spring connection technology continues to grow in popularity in the industrial and commercial markets, including automotive and railway industries. ABB Entrelec's easy to use, screw-less spring terminal blocks are mounted on industry standard DIN rails and feature:

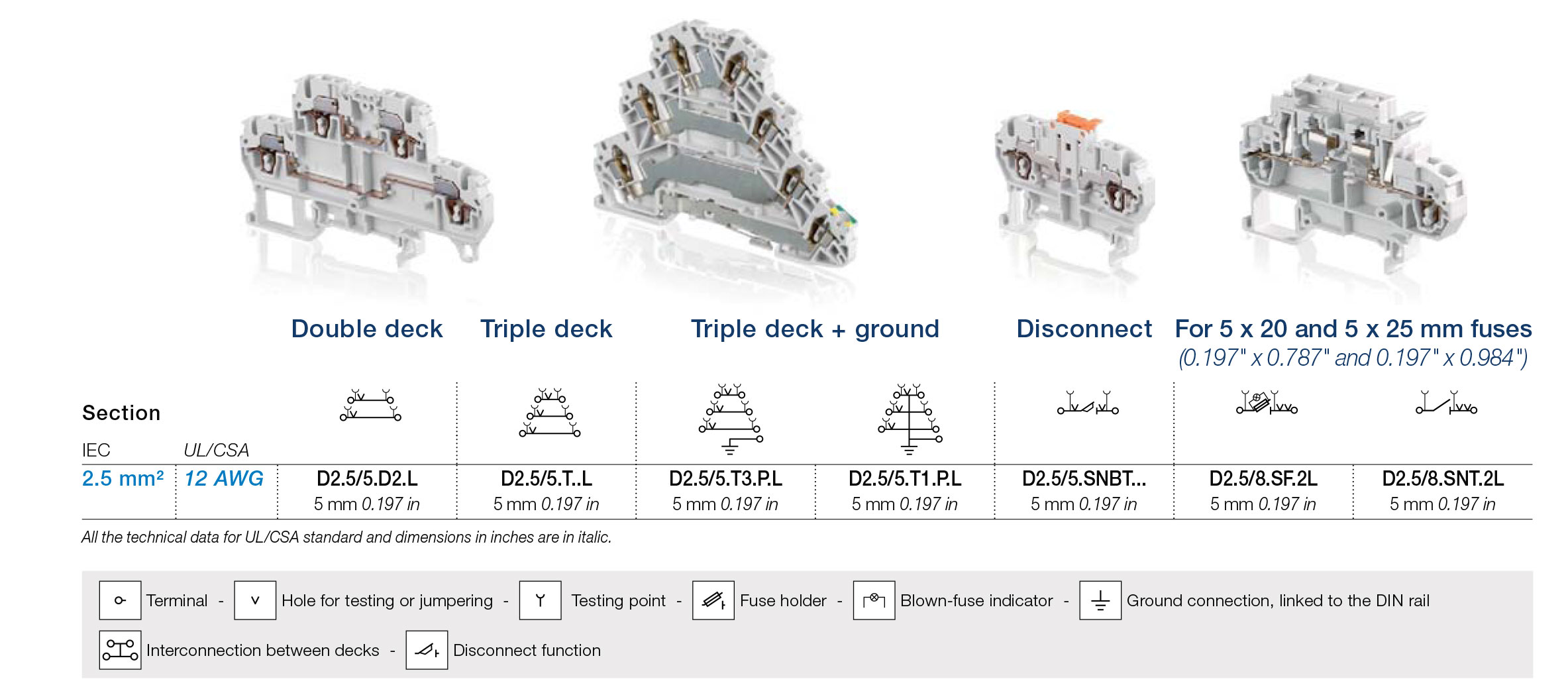

  • Multiple Functions
  • Cost-Saving Installation

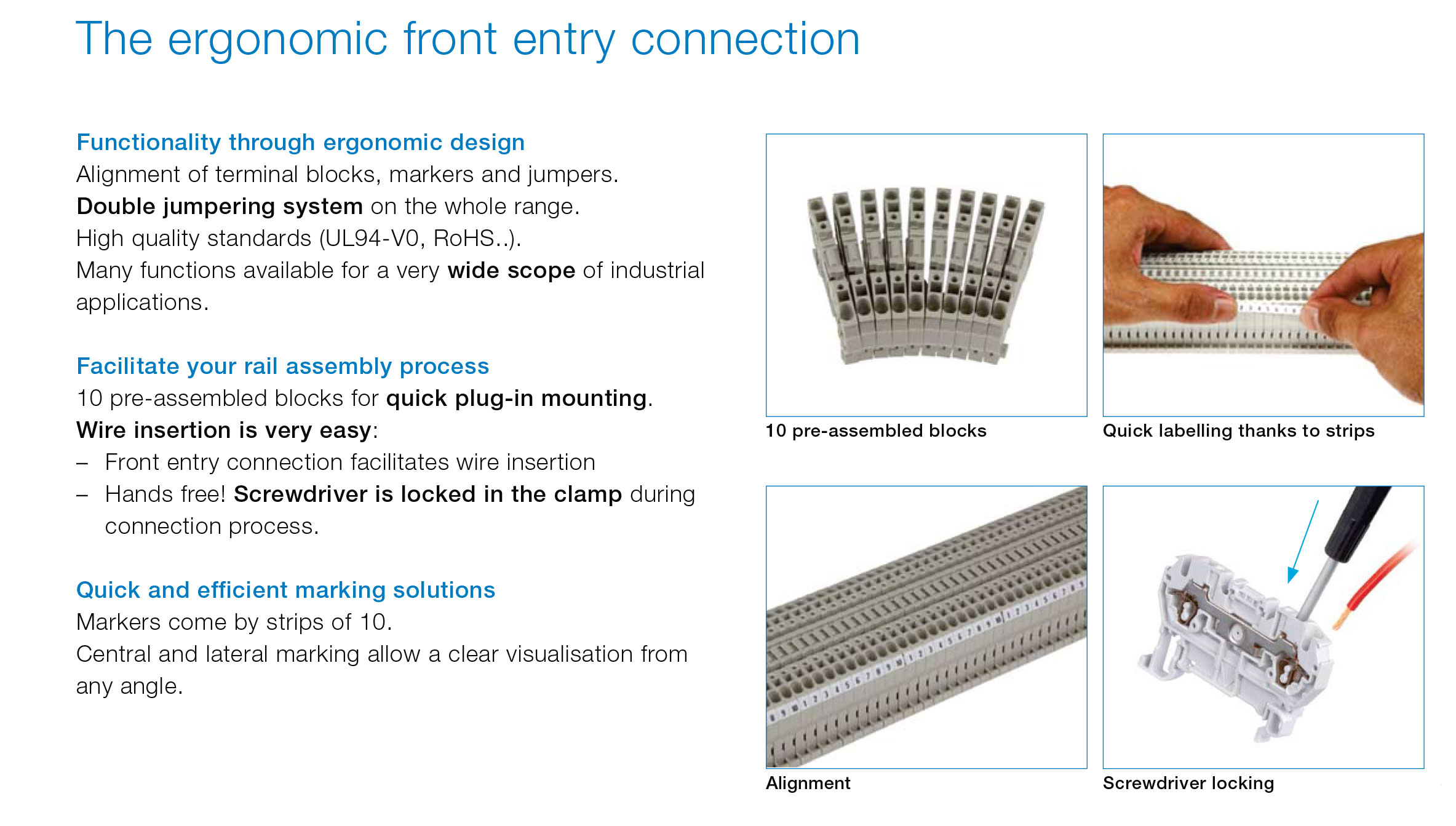

  • Top Entry for Space Savings (reducing space between rails)
  • Top Marking and IP20 (Touch-Safe)
  • Ergonomically Beneficial to the Installer
  • Funneled Entry for Ferruled or Non-Ferruled, Solid or Stranded Conductors

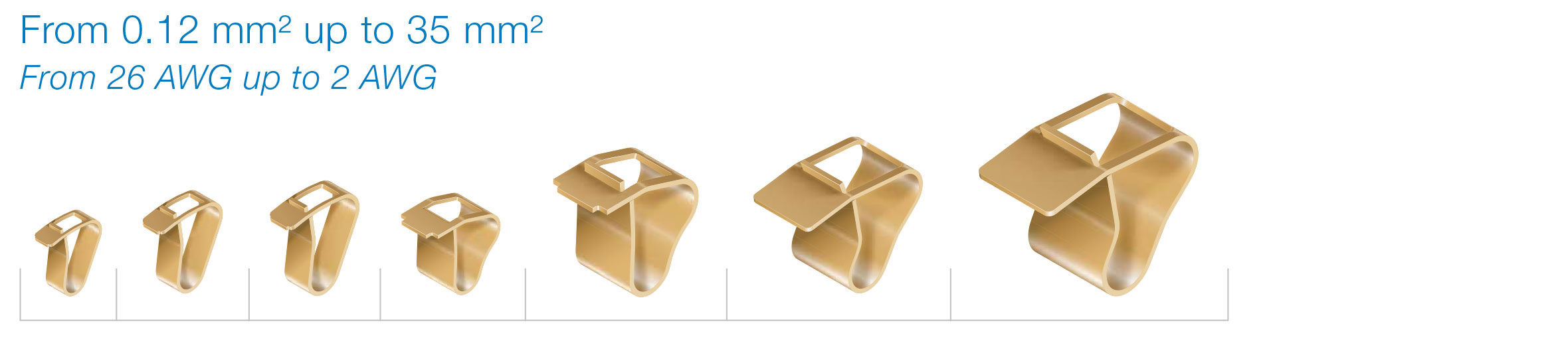

  • Accepts Wire Sizes from 26 AWG (0.12mm2) to 2 AWG (33.6mm2)
  • Current Carrying Capacity up to 93 A
  • Rated Voltages from 300 to 600 V

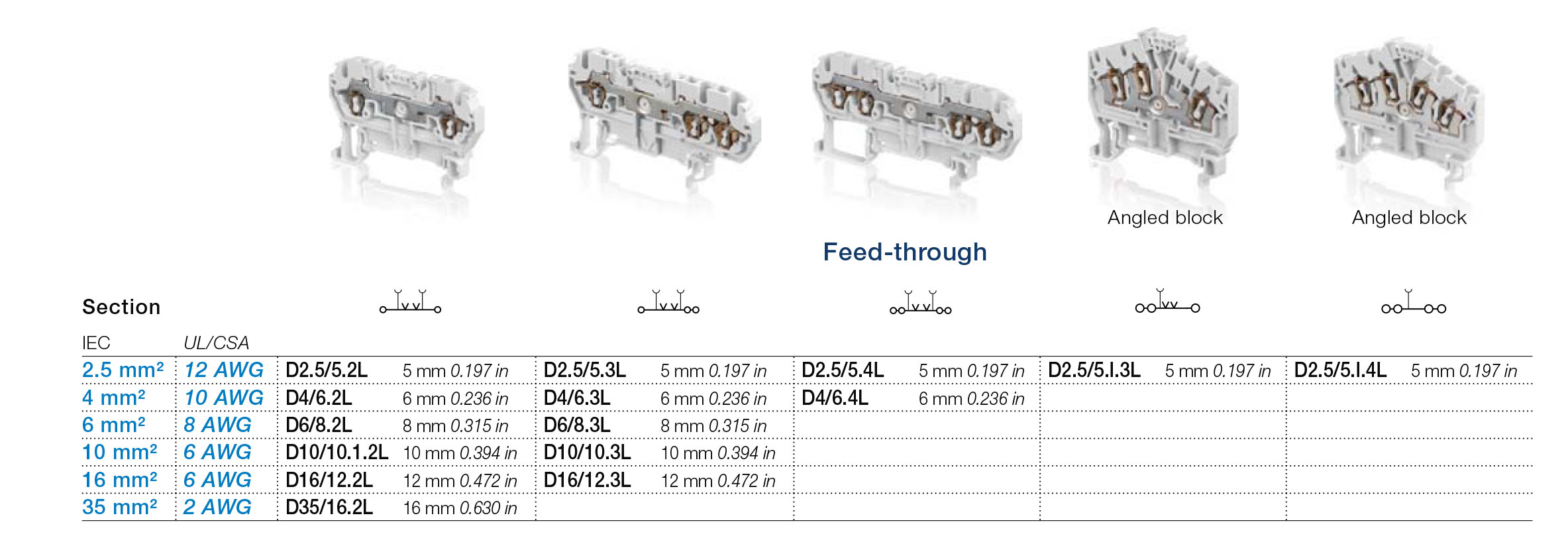

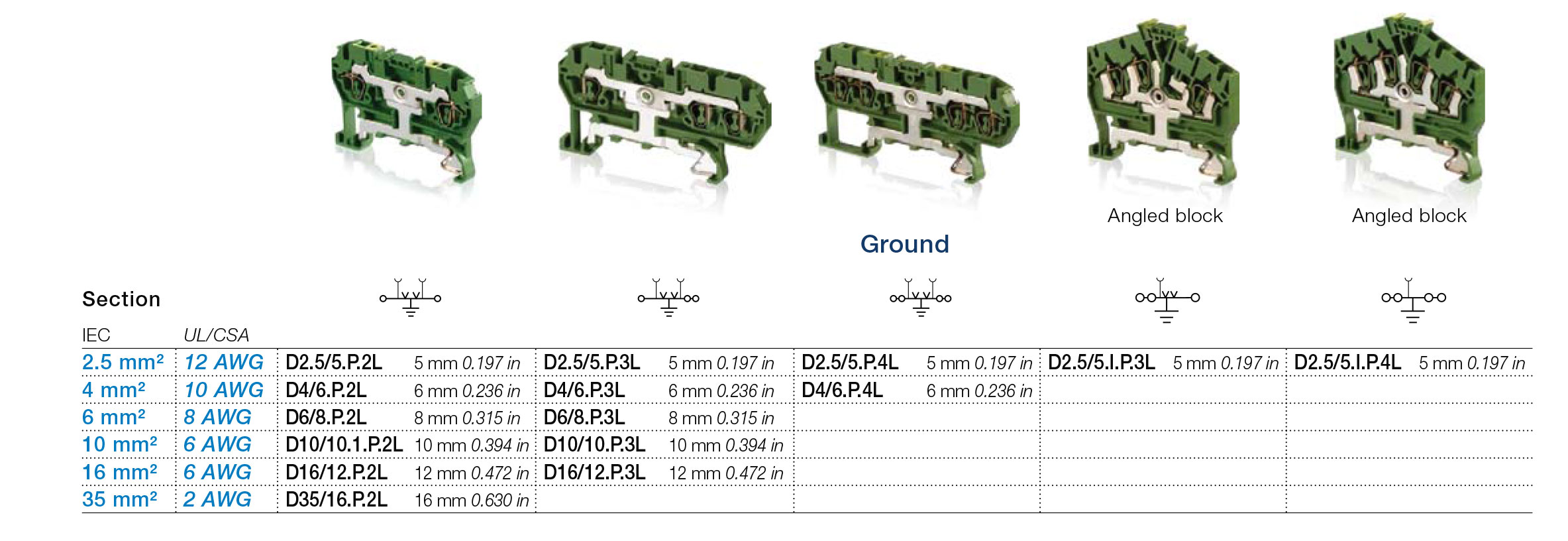

  • Terminal Block Spacing Range of 5 to 16 mm
  • Vibration Proof Compliant to International Railway Requirements
  • Complete Line of Accessories, Marking Systems, and Ferrules & Tools
  • Industry Recognized Colors

This same connection technology is found in ABB Entrelec's Mini Terminal Blocks Mini (Miniblocks for DIN 2 rail), and the ATEX product line.
