Stud terminal blocks

The preferred connection for power and distribution circuits

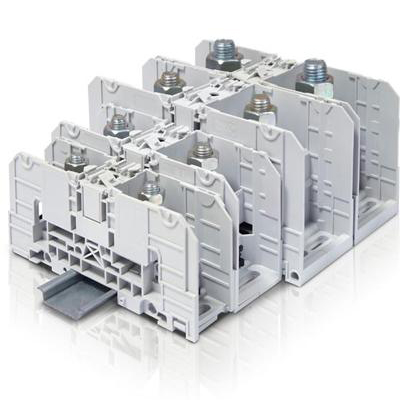

The SNA stud technology terminal blocks are dedicated to the connection and distribution of power into installations.

Main benefits

  • Saved space in cabinets thanks to high density wiring with up to two conductors per stud

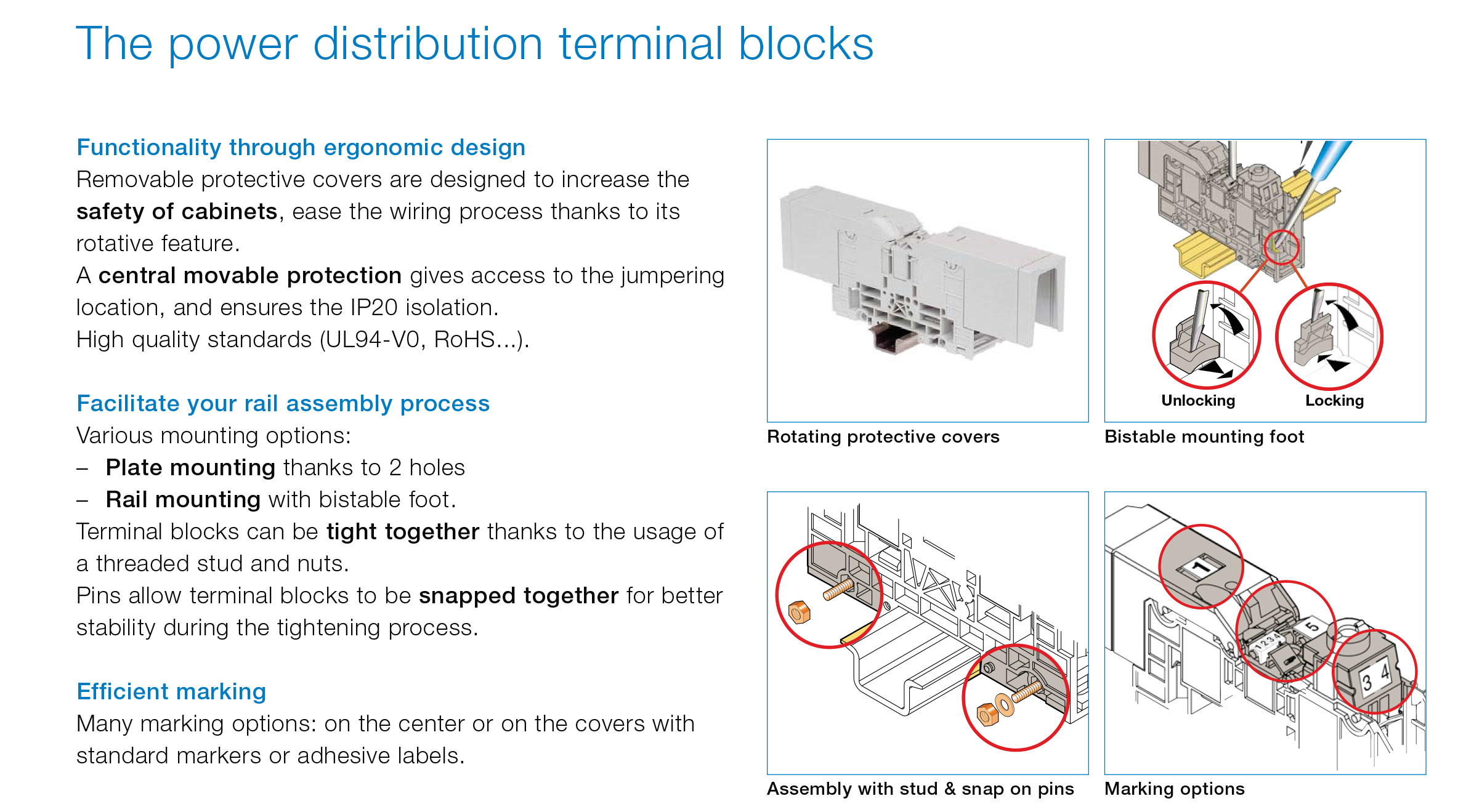

  • Increase operator security thanks to rotating and removable protective covers for jumpers and connections

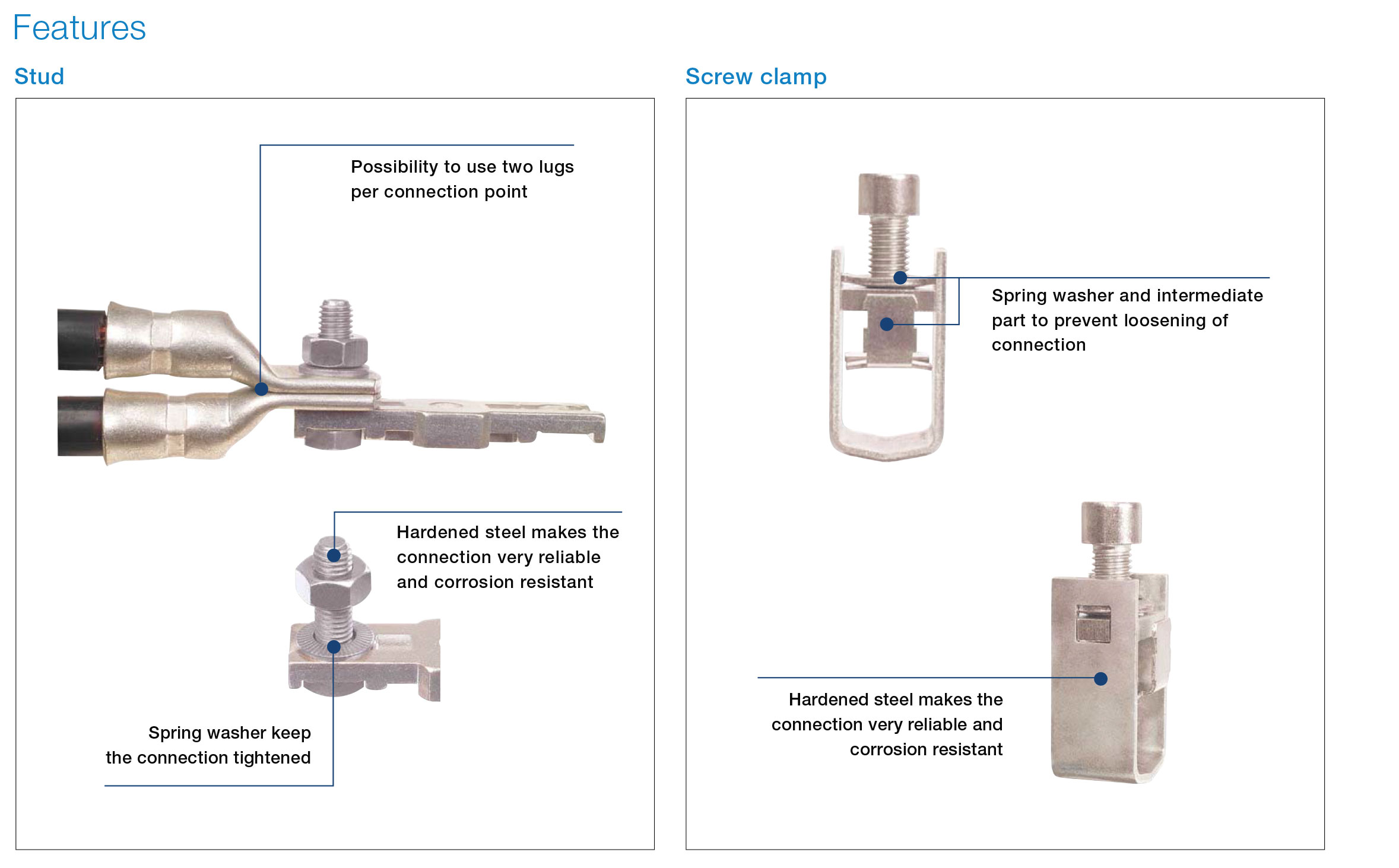

  • Secured wiring thanks to the  combination of lug and stud that prevent conductor pull-out
  • Reduce maintenance operations : our clamps include vibration resistant washers combined with highly resistant steel clamps
  • Assemby is facilitated and mounting time is reduced  thanks to bi-stable foot that allows fast locking or removal of terminal block on rail
  • Allow installation flexibility with extra  mounting options such panel or plate.

Main features

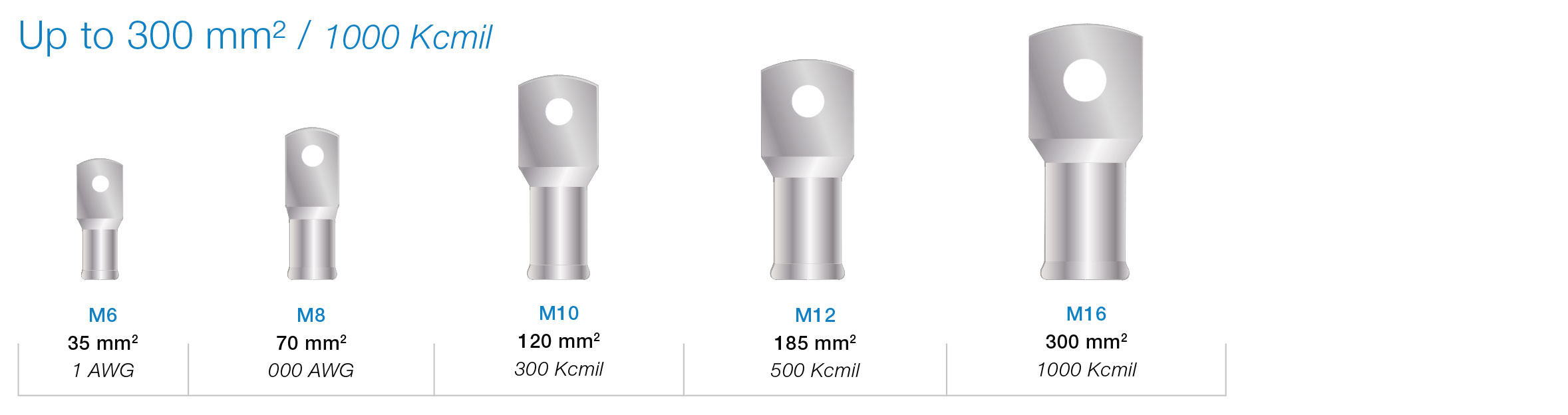

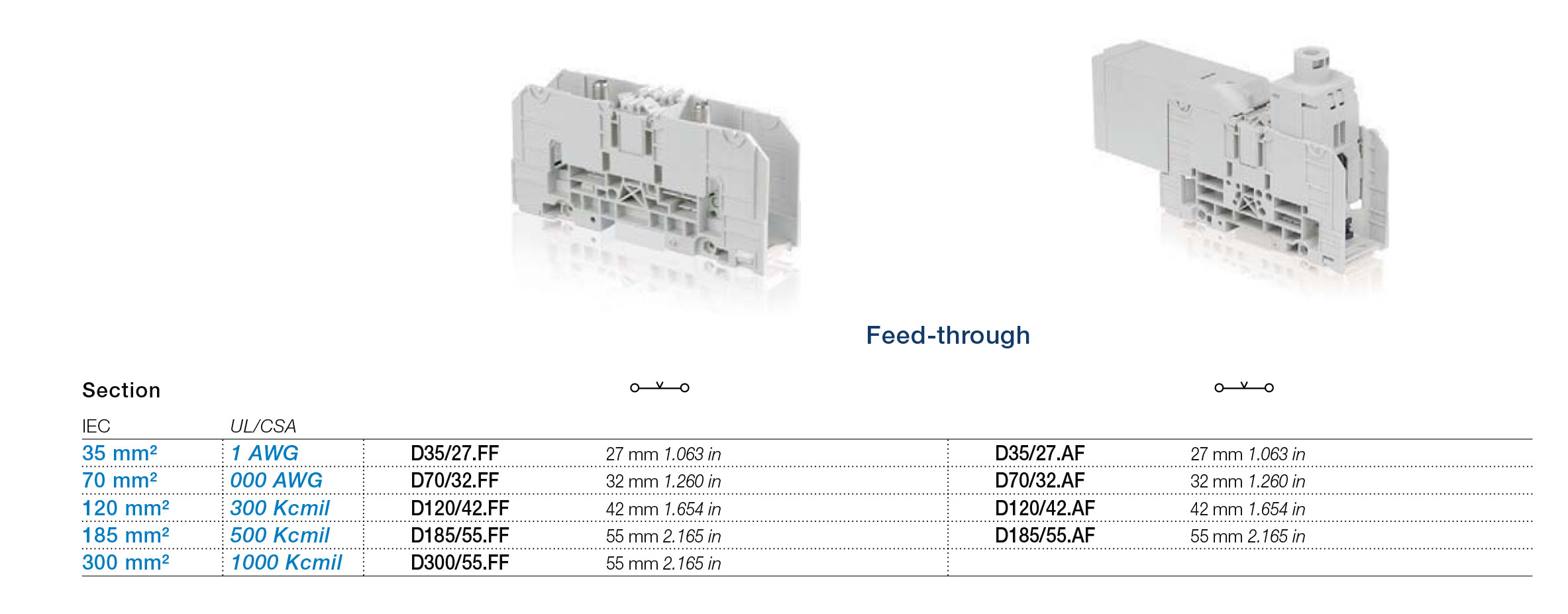

  • Connecting capacity from 35 to 300 mm² (1 AWG to 1000kcmil)

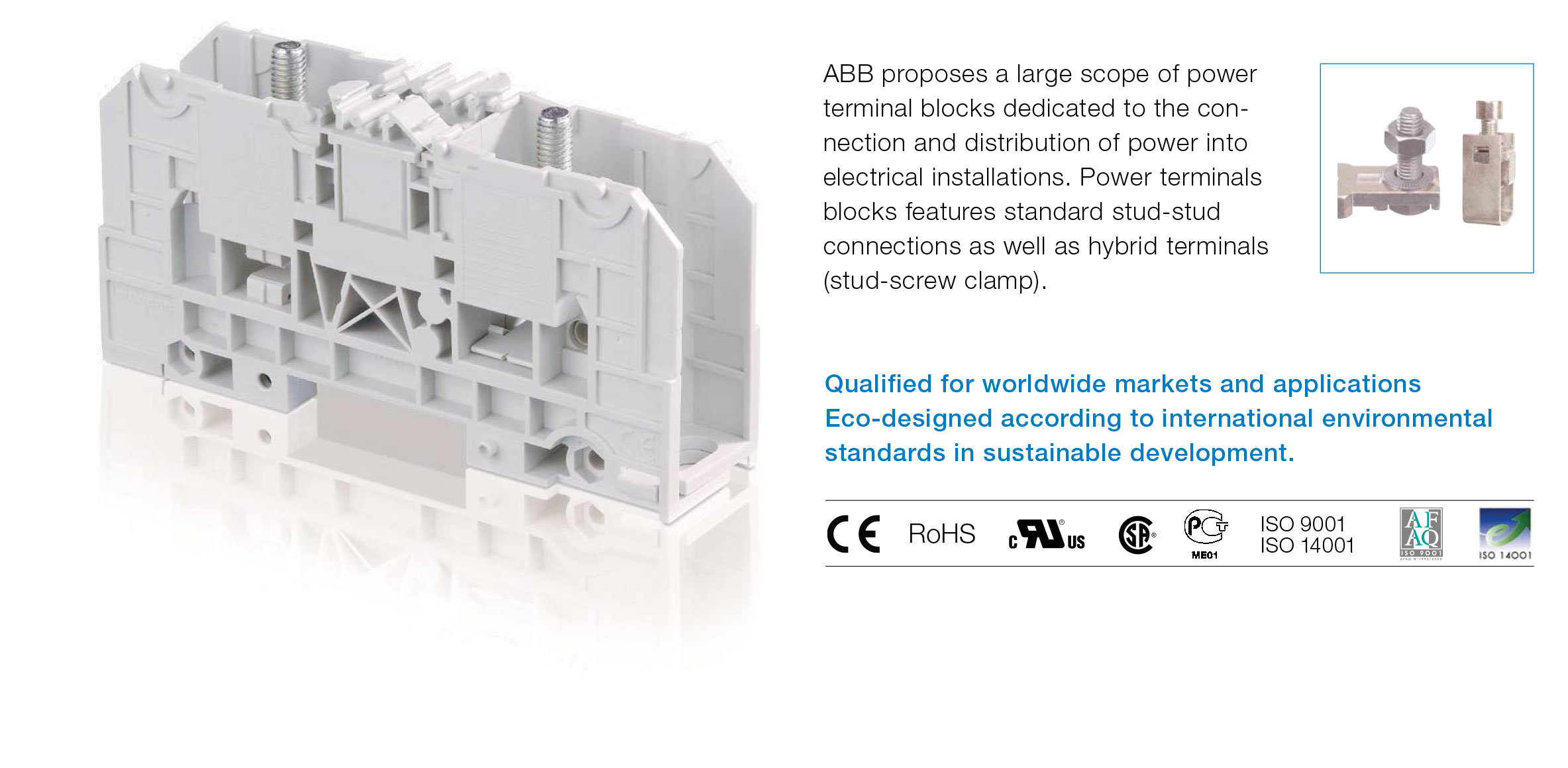

  • Technologies : stud-stud or hybrid stud-screw terminal blocks
  • Compatible with lugs in acordance with NF C 20-130 and DIN 46234
  • Connections and jumpering system are isolated (IP20) thanks to rotative protective covers
  • Pins allow terminal blocks to be snapped together for better stability
  • Derivation accessory for monitoring relays.
