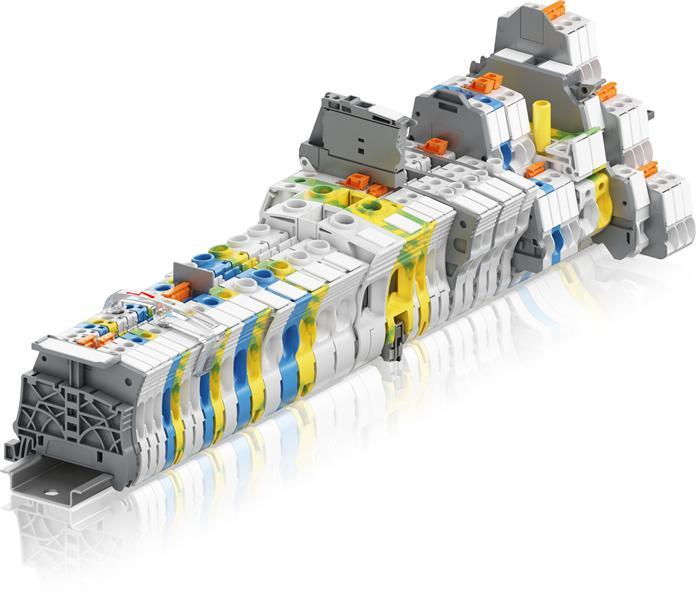

Screw clamp terminal blocks
A smart design to support your daily connection challenges
The SNK series screw clamp terminal blocks offer rationalized functions and accessories while serving a large scope of applications
Main benefits
- Maintenance & trouble shooting operations are minimized thanks to our anti-release system. Screw is locked in total safety
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin : 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers .
Main features
- Connecting capacity from 0.2 to 120 mm² (24 AWG to 0000 Kcmil)
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations : jumpering, testing and measuring
- Time & stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
SNK series Terminal blocks Screw clamp technology Catalog
