This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial battery. Easy to install, these compact devices perform three key functions: Power Supply, Back Up Module and Battery Charger.
The devices are compliant with CEI 0-16 and ENEL DK5600
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

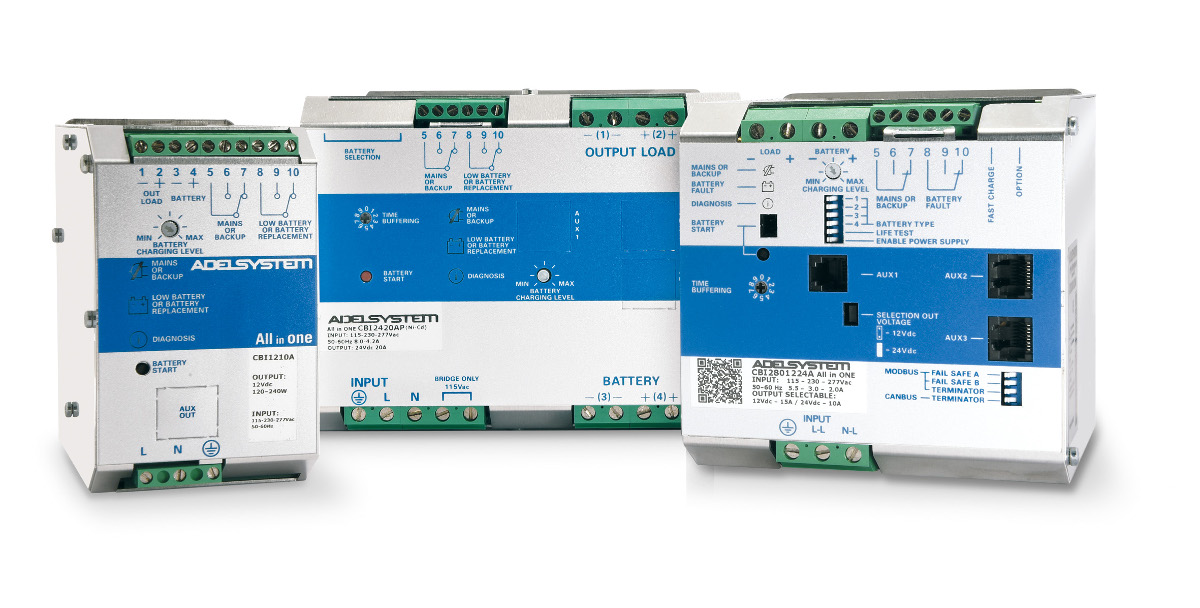

Uninterruptible power supply output DC "All In One"
Main features:
- Output voltage 12,24,48 Vdc even in case of power outage (shortage)
- Output current 2,5 A ÷ 20 A even in case of power outage (shortage)
- Automatic allocation of available power between load and battery charging up to twice-rated output current
- Visual indication of "power shortage","defective battery", "battery voltage< 30%", "battery charging level", self-diagnostic with flashing LED code
- Warning relays: "main or back-up" and "defective/flat battery" with galvanic isolated output contacts NO-NC
- 3 charging levels: "boost", "trickle" and "recovery"
- Self-diagnosis "overload", "battery sulfutation", "reverse polarity connection", "elements in short circuit", "protection against short circuit"
- Compatible with a remote connection to select "boost" or "trickle" charging mode
- Accessories upon request: external temperature sensors; voltage drop compensation; remote LED display
- Compact dimensions
- Ambient temperature operation: -10 ÷ 50° C
- IP 20
The CBIs combine the functions of Power Supply with those of Back Up Module and of Battery Charger. They use switching technology with microcontrollers and optimize the loading and unloading times of the accumulator without a deep discharge, the switching from the battery to the charger without any interruption, automatic protection without fuse against the reserve polarity, short circuit and overload and overvoltage. They carry out diagnostic checks on the inner battery through the Life Test, enabling the users to select the most appropriate charging curve to maximize the efficiency of the system and to guarantee a long-life battery while intensifying its performances. They are equipped with relays to warn against the power outage and the defective battery. They conform to the most innovative battery management as well as electrical safety standards. They can be mounted on DIN Rails.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PSM (1-phase) Power Supply Units
Main features:
- Ambient temperature operation field: -25 ÷ 60°C
- IP20
- DIN Rail Mounting
- Extremely small size
- Current reserve
Output Voltage:
– PSM 1-phase: 5 – 12 - 24 - 48Vdc
- PSM 2-phase: 24Vdc
Output Direct Current:
– PSM 1-phase: 1,5 – 2,5 – 5 - 7- 10A
PSM
The PSM range of products includes the following power supply units: 1-phase units, max. power 240W and current starting from 1,5 up to 10A, and 2-phase units, suitable for an input from main up to 240W and with current from 5 till 10A. These units, so important for the Adelsystem’s story in the power supply continuity field, are also available with output to 5V and 12V, suitable for complex applications and output to 48 Vdc, with specific features designed for driving control.
Download Datasheet PSM241A (Single-Phase Input 115 - 230Vac / Output 24Vdc, 1.5 A)
Download Datasheet PSM123A (Single-Phase Input 115 - 230Vac / Output 12Vdc, 3A)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
